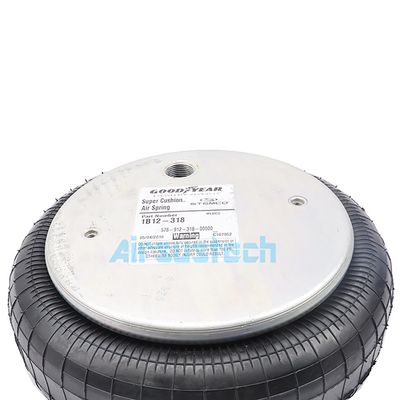

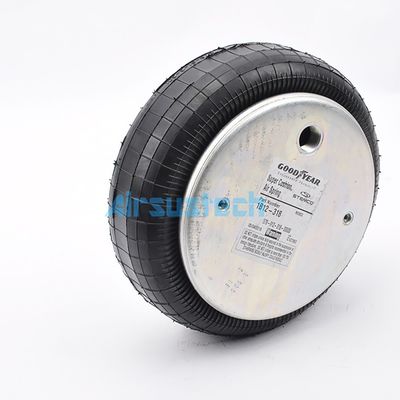

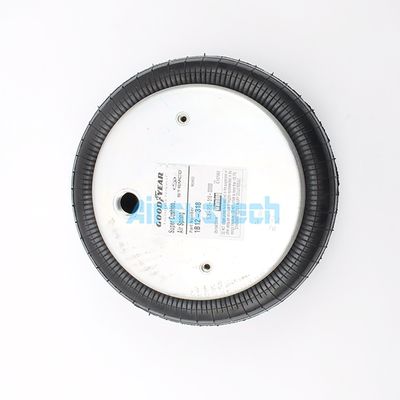

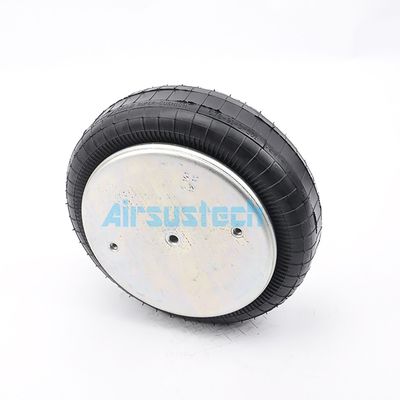

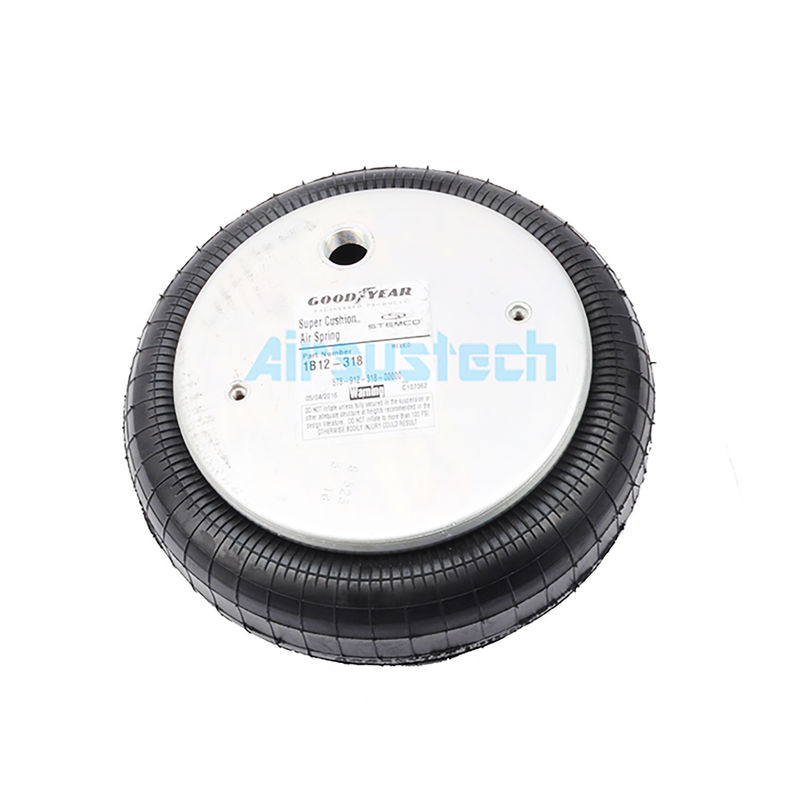

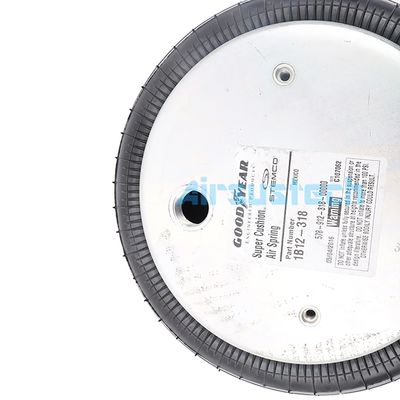

Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011

Detail produk:

Tempat asal:	Meksiko
Nama merek:	GOODYEAR
Sertifikasi:	ISO/TS16949:2009
Nomor model:	3B8030

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	6 pcs
Harga:	$99.9-159.9/pc
Kemasan rincian:	kotak karton yang kuat atau sesuai kebutuhan pelanggan
Waktu pengiriman:	2-8 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, L/C
Menyediakan kemampuan:	1000pcs/minggu

Kontak

Detil Deskripsi produk

Model No.:	1B12-318	Bahan Musim Semi:	Karet
Kualitas:	100 % diuji	Fuction:	Kurangi syok
Paket transportasi:	Karton yang kuat	Kode HS:	8708809000
Layanan purna jual:	12 bulan	Jenis:	Diisi gas

Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011

Product Description

The Goodyear Air Spring is a flexible rubber bladder supported by compressed air. It is essentially an inflatable rubber container that replaces traditional steel coil or leaf springs.

GOODYEAR: 1B12-318

GOODYEAR: 1B 12-318

GOODYEAR: 1B12 318

GOODYEAR: 578-91-3-301

GOODYEAR: 578 91 3 301

GOODYEAR: 578913301

Refer No.

Continental ContiTech: FS 330-11 CI 62743
Continental ContiTech: FS 330-11 3/4 M8
Continental ContiTech: FS 330-11 G3/4 M8
Continental ContiTech: FS 330-11 CI G3/4
Continental ContiTech: FS 330-11 CI G3/4 M8
Continental ContiTech: FS 330-11 CI / FS330-11CI / FS33011CI
Continental ContiTech Bellow: FS 330-11 / FS330-11 / FS33011
Fire-stone No.: W01-M58-6011 / W01 M58 6011 / W01M586011
Fire-stone Style: 19
Dunlop FR: 12"x1 S12100
Enidine: YI-1B12-318 / YI 1B12 318 / YI1B12318
Norgren:PM/31121 / PM 31121 / PM31121
Nominal (inch) x convolutions: 12″ x 1 / 12"x1 / 12x1

Specifications and Detailed Technical Parameters: Goodyear 1B12-318

Maximum diameter at 7 bar: 328mm
Maximum height: 140mm
Maximum travel: 89mm
Bead type: 3
Dim. A( Blind hole center): 158 mm
Dim. B: 73mm
Natural frequency at 5 bar: 2.5 fn( Hz)
Material: 2 layer standard line

About W01-M58-6011 Firestone Air Spring

Style 19	Blind nuts,1/4BSP	W01-M58-6008
Double Convoluted	Blind nuts,1/4BSP,bumper	W01-M58-6373
	Blind nuts,3/4BSP	W01-M58-6011
	Blind nuts,3/4BSP,bumper	W01-M58-6372
	Countersunk steel bead rings,40mm bolts,nuts,washers	W01-M58-6975
	Rubber bellows only	W01-358-0134

Fore Table
Assembly Height(mm)	Volume@7 BAR(cu cm)	EFF Area@7 BAR(cm sq)	kN Force
Assembly Height(mm)	Volume@7 BAR(cu cm)	EFF Area@7 BAR(cm sq)	@3 BAR	@4 BAR	@5 BAR	@6 BAR	@7 BAR
130	6379	345	9.61	13.28	16.74	20.6	24.15
120	6004	398	11.24	15.49	19.48	23.85	27.87
110	5555	444	12.67	17.39	21.84	26.65	31.1
100	5093	482	13.85	18.9	23.74	28.92	33.71
90	4566	513	14.87	20.18	25.35	30.86	35.94
80	4048	539	15.67	21.16	26.59	32.38	37.69
70	3474	559	16.27	21.93	27.58	33.60	39.13
60	2923	574	16.68	22.48	28.26	34.45	40.15
