W01-358-9978 Firestone Trailer Air Spring Bag 1R12-668 Goodyear Air Suspension Replacement

Detail produk:

Place of Origin:	GuangDong, China
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949:2009
Model Number:	1T9978

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	6pcs
Harga:	$79.9-99.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Kontak

Detil Deskripsi produk

Model Name:	Trailer Air Spring	Warranty:	12 months
Sample:	Acceptable	Firestone:	W01-358-9978
Color:	Black	Goodyear:	1R12-668
Weight:	7.033KG	Stroke:	180mm-470mm

W01-358-9978 Firestone Truck Shock Absorbers 1T15M-4 Rubber Bellow Air Spring

Carfitment & Part number

OEM NO.

Firestone W01-358-9978

Firestone Bellows Number:1T15M-4
ContiTech Number:67588, 69744, 9 10-14 P 959
ContiTech Bellows Number:9 10-13.5
Hendrickson Number:S-28929
UPC: 767555127988
MPN: W013589978

1T9978 Air Spring Technical Data

Extended Height:17.00 inches
Compressed Height: 7.90 inches
Top Plate Number:3210
Top Plate Width:9.00 inches
Piston Number:9656
Piston Width:9.75 inches

How to Choose the Right Suspension Air Spring for Your Truck

Choosing the right air spring for your truck requires consideration of multiple factors, including vehicle type, load requirements, driving conditions, and compatibility. Here is a detailed selection guide:

1. Determine vehicle information
Truck model (such as Mercedes-Benz Actros, Volvo FH, Scania R series, etc.).

Number of axles and suspension type (front suspension, rear suspension, trailer suspension, etc.).

Year of production (different years may have design differences).

2. Clarify technical parameters
Load capacity (single-axle/dual-axle load, unit: kg or lbs).

Installation dimensions:

Diameter and height (free height/compressed height) of the air spring.

Base fixing method (bolt hole spacing, flange type, etc.).

Operating pressure range (usually 5~10 bar, heavy trucks may be higher).

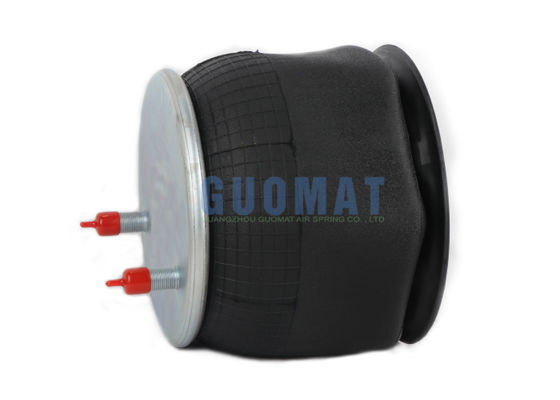

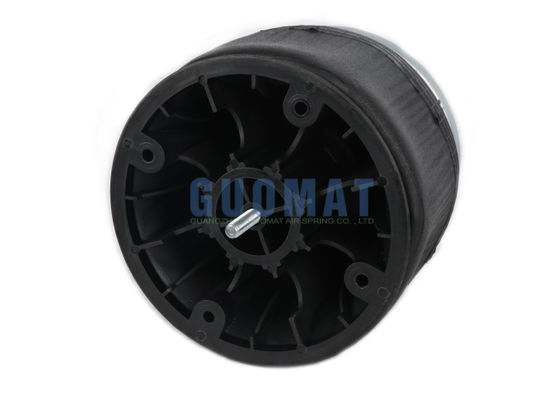

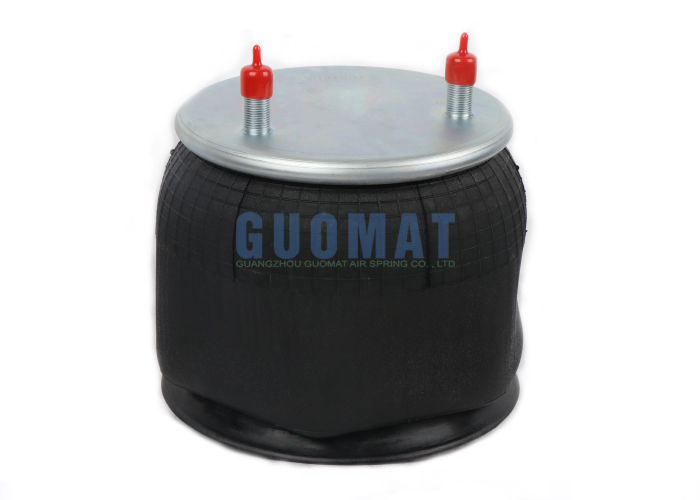

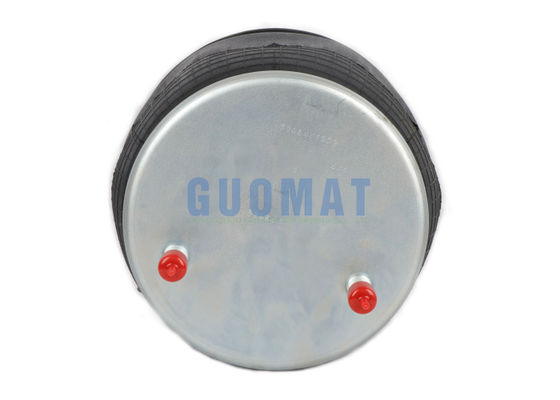

Product Picture

W01-358-9978 Firestone Trailer Air Spring Bag 1R12-668 Goodyear Air Suspension Replacement 0
