W013587725 Firestone Air Spring Actuator 141 Design Height Rubber Air Shock Repalcement

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949:2009
Nomor model:	1B7725

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	6 pcs
Harga:	$49.9-59.9/pc
Kemasan rincian:	Kotak karton yang kuat atau sesuai kebutuhan pelanggan
Waktu pengiriman:	2-8 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, L/C
Menyediakan kemampuan:	1000pcs/minggu

Kontak

Detil Deskripsi produk

Jenis:	Pegas udara karet, pegas udara berbelit -belit	Jaminan:	12 bulan
Bahan:	Karet + baja	Sedang mengemas:	Karton/Pallet
batu api:	W01-358-7725	Air Firring:	3/8-16UNC
Tinggi Desain:	141mm	Aplikasi:	Untuk Mesin Industri
Menyoroti:	Firestone air spring actuator , Rubber air shock replacement , 141 design height air spring

W013587725 Firestone Air Spring Actuator 141 Design Height Rubber Air Shock Replacement

Product Specifications

Attribute	Value
Type	Rubber Air Spring, Convoluted Air Spring
Warranty	12 Months
Material	Rubber + Steel
Packing	Carton/Pallet
Firestone	W01-358-7725
Air Fitting	3/8-16UNC
Design Height	141mm
Application	For Industrial Machine

Product Details

Product Name: Air Spring

Manufacturer/Brand: GUOMAT

Model: 1B7725

Material: Natural Rubber

Warranty: 1 Year

End Fittings: Steel

Type: Industrial Bellows Air Spring

Main Function: Shock absorption, vibration isolation, load support, height adjustment

Application: Vibration isolation for industrial machinery

OEM Number: Firestone W01-358-7725 / W01 358 7725 / W013587725

Technical Specifications

Parameter	Value / Description
Top Cover Plate	Diameter: 114.8 mm
Bottom Cover Plate	Diameter: 114.8 mm
Threaded Holes	2×3/8-16 UNC
Air Fitting	1/4-18 NPTF
Center Distance Between Threaded Holes	44mm
Natural Height	141mm
Natural OD	126mm

Product Advantages

Original quality, precise match:
OEM Firestone W01-358-7725 - guaranteed to be identical to the original equipment design data, a complete replacement with reliable performance.
Excellent vibration damping:
Leveraging the compressibility of air, it provides excellent vibration and shock absorption. This significantly reduces noise and vibration generated by equipment operation.
Durability and reliable operation:
The high-quality rubber bladder offers excellent elasticity and fatigue resistance, suitable for various industrial environments.
Precise load support and height control:
By adjusting the internal air pressure, the equipment height and supported load can be precisely controlled to meet the needs of various working conditions.
Easy maintenance:
The rational design facilitates inspection and maintenance. As a standard OEM part, replacement is quick and easy.

Typical Applications

Vibration-absorbing bases for industrial punching machines and presses
Vibration isolation for precision measuring instruments and optical equipment platforms
Vibration isolation for large fans and pumps
Cushioning supports for vibrating screens and conveying systems
Height adjustment and vibration reduction for printing machinery and injection molding machines
Industrial platforms requiring precision leveling and load support

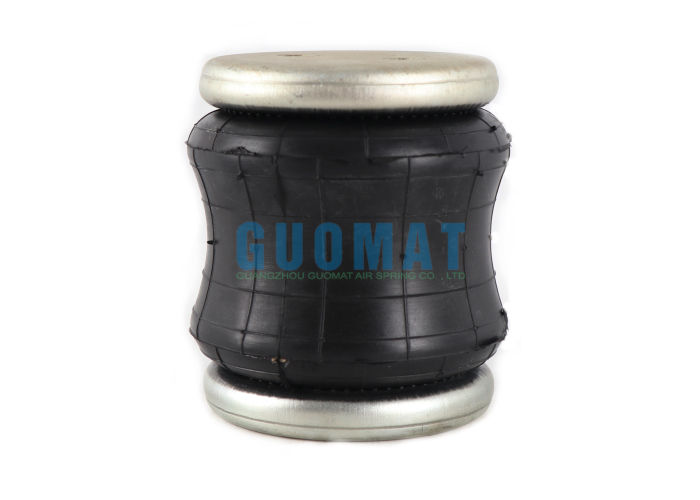

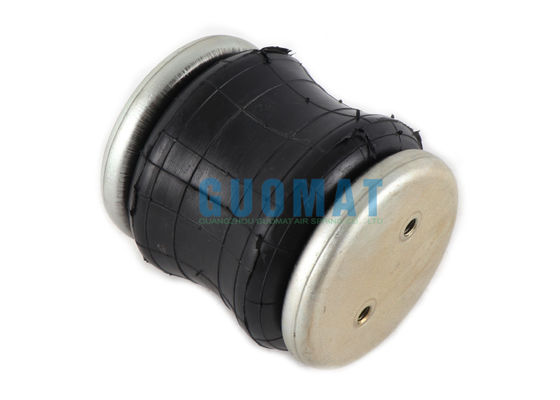

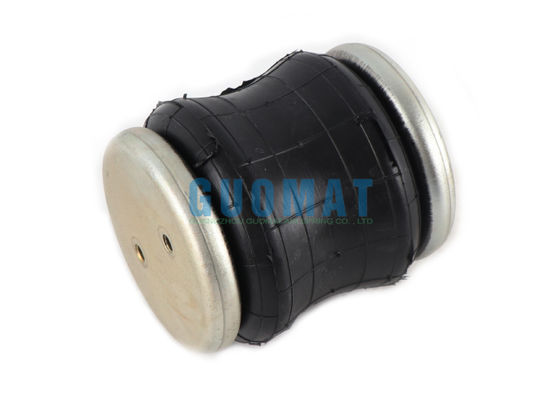

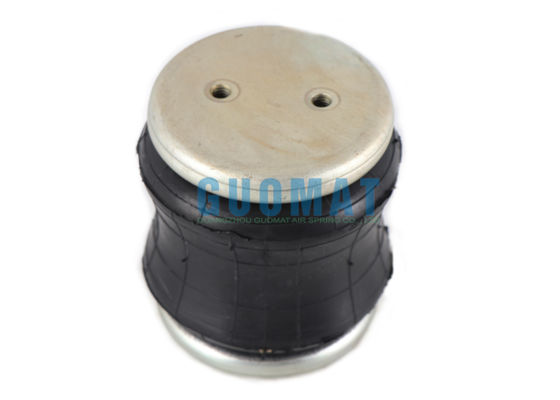

Product Images
