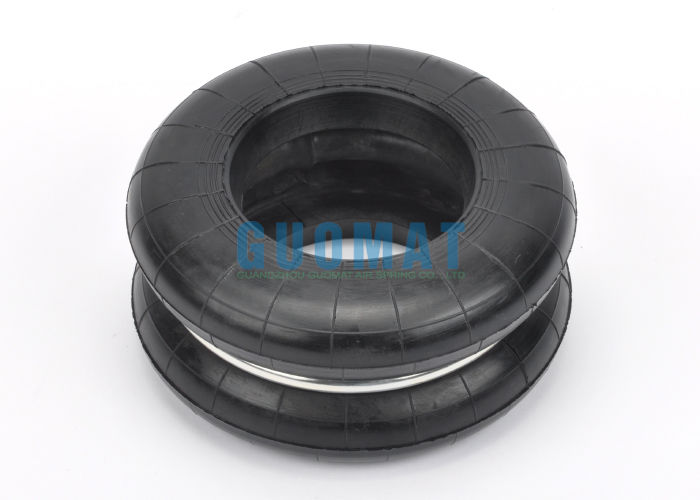

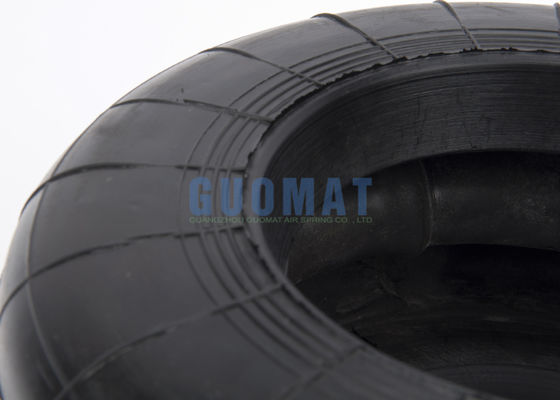

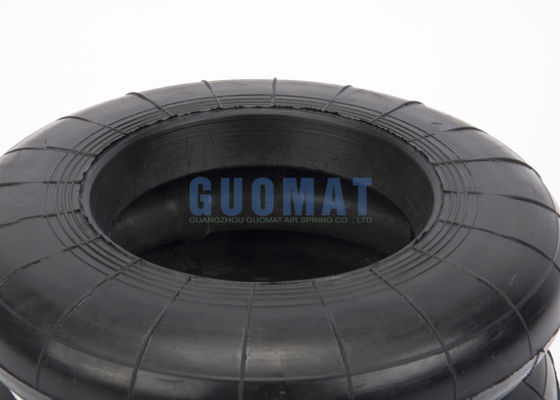

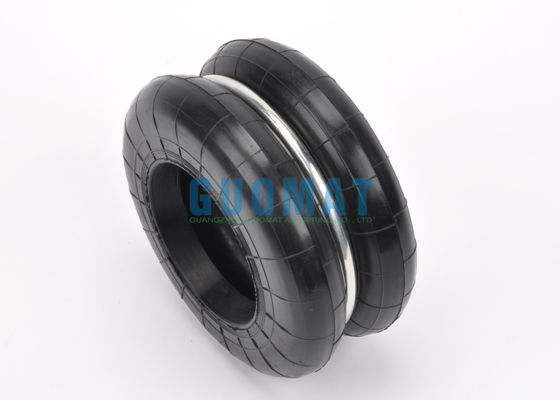

OEM Standards S-160-2R/SC-160-2R YOKOHAMA Punching Press Air Spring Air Lift Bag

Detail produk:

Tempat asal:	Guangzhou China
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949, ISO9001
Nomor model:	F-160-2

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	5 pcs
Harga:	USD99.9-189.9/PC
Kemasan rincian:	Kotak karton yang kuat atau sesuai kebutuhan pelanggan
Waktu pengiriman:	3-7 hari kerja
Syarat-syarat pembayaran:	L/C, T/T, Western Union atau lainnya
Menyediakan kemampuan:	1000pcs/minggu

Kontak

Detil Deskripsi produk

Nama:	Pukulan Air Musim Semi	Kualitas:	100 % diuji
Fuction:	Kurangi syok	Paket transportasi:	Karton yang kuat
Bahan Musim Semi:	Karet	Warna:	Hitam
OEM no.:	S-160-2R	Bahan cincin pinggang:	baja
Menyoroti:	YOKOHAMA punching press air spring , OEM air lift bag , SC-160-2R rubber air spring

OEM Standards S-160-2R/SC-160-2R YOKOHAMA Punching Press Air Spring Air Lift Bag

Product Attributes

Attribute	Value
Name	Punch Air Spring
Quality	100 % Tested
Function	Reduce Shock
Transport Package	Strong Cartons
Spring Material	Rubber
Color	Black
OEM No.	S-160-2R
Waist Ring Material	Steel

Product Description

OEM Standards S-160-2R/SC-160-2R YOKOHAMA Punching Press Air Spring Air Lift Bag

OEM Cross Reference

GUOMAT Part No.: F-160-2
YOKOHAMA S-160-2R
YOKOHAMA S 160 2R
YOKOHAMA S-160-2
YOKOHAMA S 160 2
YOKOHAMA S160-2R
YOKOHAMA Air Spring SC-160-2R
YOKOHAMA Air Spring SC 160 2R
YOKOHAMA Air Spring SC1602R

Specifications and Detailed Technical Parameters: F-300-2

Model Size: F-160-2

Design Height: 98(mm)

Max. Height: 148(mm)

Min Height: 53(mm)

Common Maximum Travel(mm): ±35

Compression Max. Outside Diameter (mm): 220(mm)

Effective Area(cm2): 200cm2

Volume(L): 2.1

Load(KN): 9.8

Dynamic Spring Constant(n/mm): 255

Natural Vibration Frequency(Hz): 2.5

Maximum Internal Pressure (MPA): 0.88

Internal Pressure Failure(MPA): 2.9-3.9

A punch press air spring, also commonly known as an air cushion, is a precision elastic component that uses air as the elastic medium. Installed inside the stamping die, it provides a strong, stable, and controllable spring force for the die's pressing, unloading, and ejection operations.

Frequently Asked Questions

Q: How to order?

A: Step 1, please tell us what model and quantity you need; Step 2,then we will make a PI for you to confirm the order details; Step 3,when we confirmed everything ,you can arrange the payment; Step 4,finally we deliver the goods within the stipulated time.

Q: When will make delivery?

A: Delivery time is 2-8woring days.

After-sales service

1 year warranty for all kinds of products; If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service.

Payment

T/T,Western Union,L/C

Transportation

Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.

GUOMAT F TYPE AIR SPRING CATALOGUE

GUOMAT NO.	YOKOHAMA NO.	YOKOHAMA NO.
F-600-1	S-600-1R	SC-600-1R
F-600-2	S-600-2R	SC-600-2R
F-600-3	S-600-3R	SC-600-3R
F-600-4	S-600-4R	SC-600-4R
F-600-5	S-600-5R	SC-600-5R
F-550-2	S-550-2R	SC-550-2R
F-550-1	S-550-1R	SC-550-1R
F-500-2	S-500-2R	SC-500-2R
F-500-3	S-500-3R	SC-500-3R
F-500-4	S-500-4R	SC-500-4R
F-500-5	S-500-5R	SC-500-5R
F-450-1	S-450-1R	SC-450-1R
F-450-2	S-450-2R	SC-450-2R
F-450-3	S-450-3R	SC-450-3R
F-450-4	S-450-4R	SC-450-4R
F-450-5	S-450-5R	SC-450-5R
F-400-2	S-400-2R	SC-400-2R
F-400-3	S-400-3R	SC-400-3R
F-400-4	S-400-4R	SC-400-4R
F-400-5	S-400-5R	SC-400-5R
F-350-1	S-350-1R	SC-350-1R
F-350-2	S-350-2R	SC-350-2R
F-350-3	S-350-3R	SC-350-3R
F-350-4	S-350-4R	SC-350-4R
F-300-1	S-300-1R	SC-300-1R
F-300-2	S-300-2R	SC-300-2R
F-300-3	S-300-3R	SC-300-3R
F-300-4	S-300-4R	SC-300-4R
F-240-4	S-240-4R	SC-240-4R
F-240-3	S-240-3R	SC-240-3R
F-240-2	S-240-2R	SC-240-2R
F-240-1	S-240-1R	SC-240-1R
F-220-4	S-220-4R	SC-220-4R
F-220-3	S-220-3R	SC-220-3R
F-220-2	S-220-2R	SC-220-2R
F-200-2	S-200-2R	SC-200-2R
F-200-3	S-200-3R	SC-200-3R
F-200-4	S-200-4R	SC-200-4R
F-160-1	S-160-1R	SC-160-1R
F-160-2	S-160-2R	SC-160-2R
F-160-3	S-160-3R	SC-160-3R
F-160-4	S-160-4R	SC-160-4R
F-120-4	S-120-4R	SC-120-4R
F-120-3	S-120-3R	SC-120-3R
F-120-2	S-120-2R	SC-120-2R
