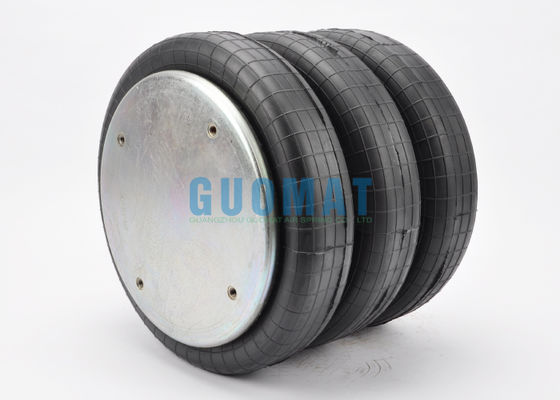

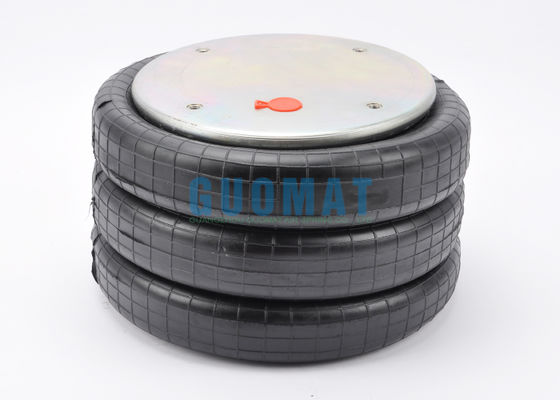

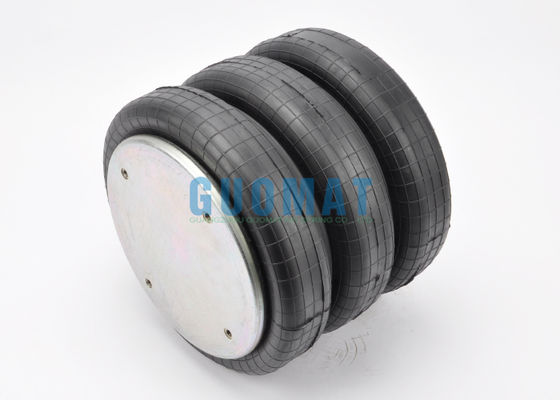

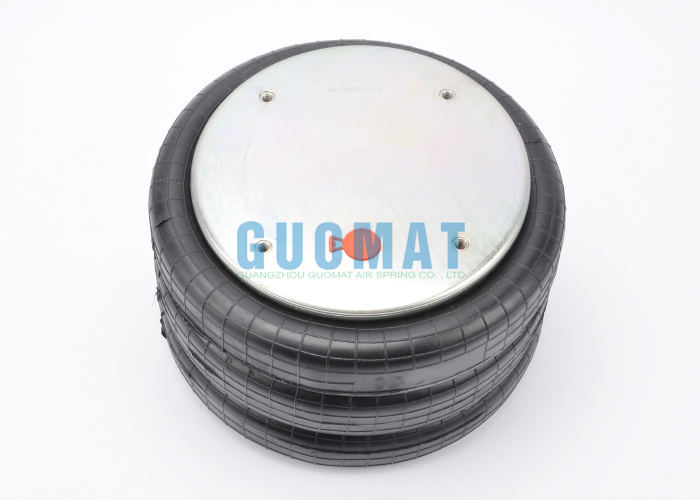

Rubber Air Balloon W01-095-0263 Suspension Air Spring Replacement Contitech FT 530-35 849

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949:2009
Nomor model:	3B0263

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	6 pcs
Harga:	$79.9-89.9/pc
Kemasan rincian:	kotak karton yang kuat atau sesuai kebutuhan pelanggan
Waktu pengiriman:	2-8 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, L/C
Menyediakan kemampuan:	1000pcs/minggu

Kontak

Detil Deskripsi produk

Nama Produk:	Musim semi udara industri	Jaminan:	12 bulan
Bahan:	Karet dan baja	Nama lain:	Balon Udara Karet
Kemampuan tekanan:	0,2-0,8 M PA	Firestone:	W01-095-0263
Contitech:	SEPERTI 530-35 849	Berat:	20,3kg
Menyoroti:	Rubber air spring replacement , Contitech air suspension spring , FT 530-35 air balloon

Rubber Air Balloon W01-095-0263 Suspension Air Spring Replacement Contitech FT 530-35 849

Product Description

Item Name: Suspension Air Spring

Brand: GUOMAT

GUOMAT NO.: 3B0263

Material: Rubber and Galvanizing

Warranty: 1 Year

MOQ: 1 pcs

Car Model: Universal

Application: Car Air Suspension

Function: Lifting

Delivery Time: 3-7 Working Days

Payment: T/T,Western Union, Paypal

Shipment: FedEx,UPS,DHL,EMS...

Technical Data

Top Cover Plate Diameter:287mm

Bottom Cover Plate Diameter:287mm

Gas Hole / Air inlet:M22X1.5

Rubber Bellows MAX Diameter:405mm

Rubber Bellows Natural Diameter:350mm

The Natural Height: 330mm

Top Cover Plate Screw (Nut) Tooth:4XM8X1.25

Bottom Cover Plate Screw (Nut) Tooth:4XM8X1.25

Screw Center Distance of Top Cover Plate:158.8mm

Screw Center Distance of Bottom Cover Plate:158.8mm

Screw And Gas Hole Distance of Top Cover Plate:79.4mm

OEM Number / Cross Reference Number

Firestone Number: W01-095-0263

Firestone Number: W01 095 0263

Firestone Number: W010950263

Firestone Style: 333

Contitech Number: FT530-35 849

Contitech Number: FT 530-35 849

Goodyear Number: 578328630

Goodyear Number: 578 3 2 8630

Goodyear Number: 578338335

Goodyear Number: 578 3 3 8335

Contitech Triple Convoluted Air Spring

Assembly No.	Bellows No.	Order No.
FT 330-29 413	FT 330-29	64560
FT 330-29 430	FT 330-29	64561
FT 330-29 431	FT 330-29	64562
FT 330-29 432	FT 330-29	64563
FT 330-29 434	FT 330-29	64285
FT 330-29 466	FT 330-29	64565
FT 330-29 469	FT 330-29	64566
FT 330-29 498	FT 330-29	6457
FT 330-29 503	FT 330-29	64568
FT 330-29 520	FT 330-29	64570
FT 330-29 525	FT 330-29	64571
FT 330-29 546	FT 330-29	64572
FT 330-29 547	FT 330-29	64573
FT 330-29 548	FT 330-29	64574
FT 330-29 554	FT 330-29	66522
FT 330-29 703	FT 330-29	64648
FT 330-29 714	FT 330-29	67904
FT 330-29 722	FT 330-29	64709
FT 330-29 723	FT 330-29	64710
FT 330-29 773	FT 330-29	65978
FT 330-29 790	FT 330-29	69747
FT 330-29 793	FT 330-29	70418
FT 330-29 821	FT 330-29	70123
FT 330-29 827	FT 330-29	70419
FT 330-29 832	FT 330-29	70420
FT 330-29 874	FT 330-29	69630
FT 330-29 875	FT 330-29	69641
FT 330-29 909	FT 330-29	602419
FT 330-29 975	FT 330-29	74321
