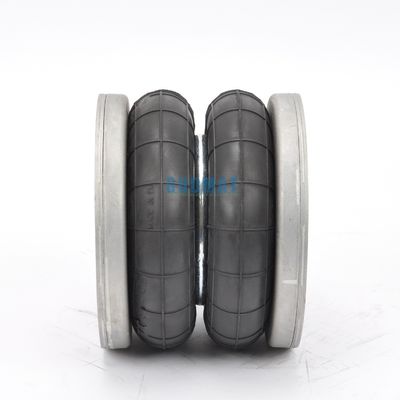

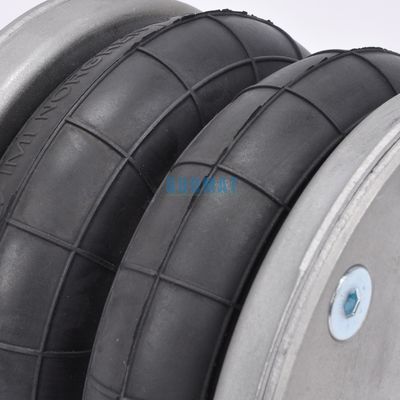

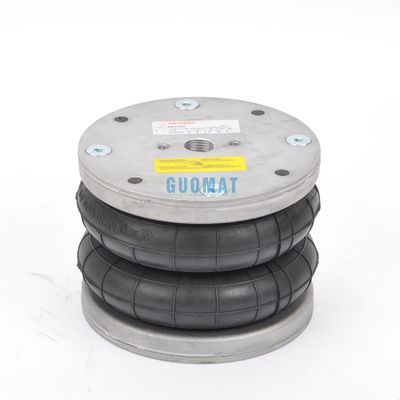

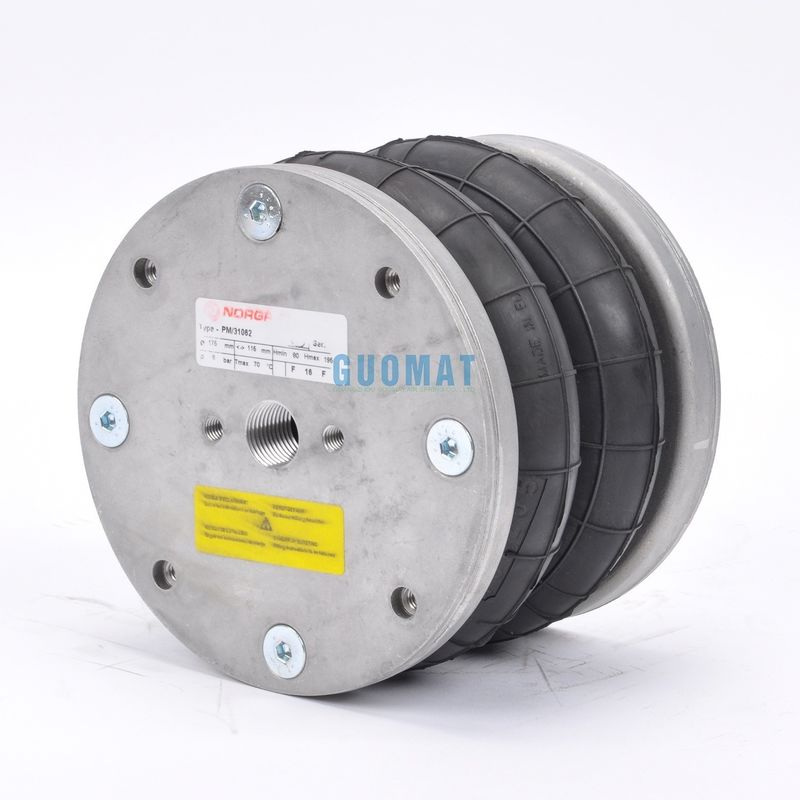

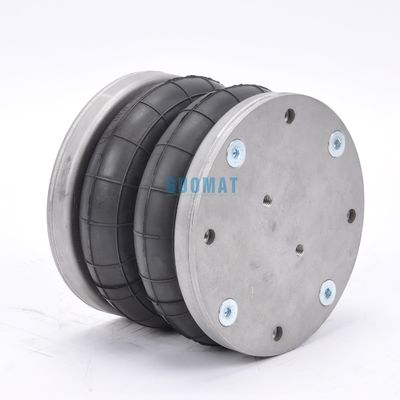

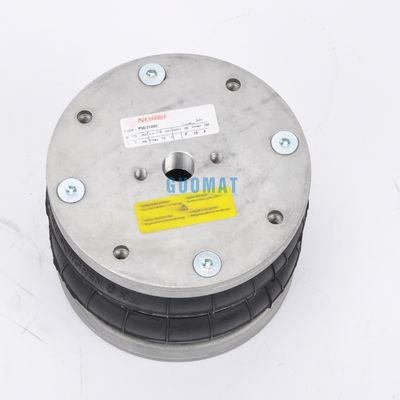

PM31062 Norgren Air Spring Actuator 6 "x2 Aluminium Firestone W01R584070 kantong udara industri

PM31062 Norgren Air Spring Actuator 6 "x2 Aluminium Firestone W01R584070 kantong udara industri



PM31062 Norgren referensi OEM:

Norgren Bagian NO.: PM31062
Dunlop Bagian NO.: 6 "x2
Firestone Air Spring Bagian NO.: W01-R58-4070 - (6 x 2 Alu)


Spesifikasi dan Parameter Teknis Rincian

Kacang/ Kacang Buta
Gigi sekrup penutup atas (kacang): 4 X M8

Gigi sekrup (kacang) penutup bawah: 4 X M8

lubang udara / inlet udara / konektor udara
ventilasi udara / inlet udara: G1 / 2

penutup
Diameter penutup atas (lebar): 153,5 mm

Diameter penutup bagian bawah (lebar): 153,5 mm

Bahan pelat atas dan bawah: aluminium

Balon karet
Diameter maksimum 7 bar: 175MM

Tekanan karet: 80mm-195m

blok bumper / blok penyangga
Tidak ada penghalang
Pinggang/cincin pinggang yang diputar
Girdle Hoop: sebuah lingkaran sabuk

Beban maksimum adalah ketinggian 80 mm dan 8 bar: 1415 daN

Jenis lain dari model balon udara:

Firestone Air Spring W01R584070 (6 x 2 Alu)

Firestone Air Spring W01R584053 (6 x 2 Baja)

Firestone Air Spring W01R584078 (6 x 1 Alu)

Firestone Air Spring W01R584081 (2 3/4 " x3)

Firestone Air Spring W01R584051 Dunlop Style 4,5 " x 2

Firestone Air Spring W01R584052 (6" x1 baja)

Firestone Air Spring W01R584057 (10 x 1 baja)

Firestone Air Spring W01R584054 8x1 Baja

Firestone Air Spring W01R584028 8 "x1 Epichlorhydrin

Firestone Air Spring W01R584027 8x2 (Epichlorhydrin / Herclor)

Firestone Air Spring W01R584090 8 "x2 Butyl

Firestone Air Spring W01R584055 8x2 baja

Firestone Air Spring W01R584060 (12 x1 baja) Fire stone Air Spring W01R584077 (12 x1 Herclor)

Firestone Air Spring W01R584056 8 "x3 Baja

Firestone Air Spring W01R584062 (12 x3 Baja)

Firestone Air Spring W01R584065 (14 1/2 x3 Baja)

Firestone Air Spring W01R584098 (14 1/2 x1 Herclor)

Firestone Air Spring W01R584097 (14" 1/2 x2 Herclor)

Firestone Air Spring W01R584025 (10" x1 Epichlorhydrin/Herclor)

Firestone Air Spring W01R584059 (10" x3 baja)

Bagian Spar Bellow 8 "x2 W01R584045

Firestone Air Spring W01R584064 14 " 1/2 x2

Firestone Air Spring W01R584063 14 1/2 x1

Bellow hanya 8 " x 1 W01R584085

Firestone Air Spring W01R584048

W01R584080 2 3/4 " x 2

Firestone Air Spring W01R584060 12 "x2 baja

Firestone Air Spring W01R584070 (6 x 2 V2a)

Firestone Air Spring W01R584051E 4,5 x 2 Baja tahan karat

Firestone Air Spring W01R584050

W01R584080 2 3/4 " x 1

Norgren Air Spring Actuator
