566-18-3-004 Rubber Bellows 1R9-003 Goodyear Truck Suspension Air Spring

Detail produk:

Tempat asal:	ABS, PC/ABS, PP, PC, POM(Asetal/Delrin), Nilon 6, Nilon 6/6, PA 12, HDPE, LDPE, PS(HIPS), PVC, PET,
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949, ISO9001
Nomor model:	1T9003

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	5 buah
Harga:	USD79.9-89.9/PC
Kemasan rincian:	Kotak Karton yang Kuat atau sesuai Kebutuhan Pelanggan
Waktu pengiriman:	3-7 hari kerja
Syarat-syarat pembayaran:	L/C,T/T,Western Union atau lainnya
Menyediakan kemampuan:	1000 buah/minggu

Kontak

Detil Deskripsi produk

selamat tahun no.:	1R9-003	Bahan:	Karet alam
Fungsi:	Mengurangi Kejutan	Jenis:	Berisi Gas
Aplikasi:	Sistem Suspensi Truk	Nomor Bellow:	566-18-3-004
Menyoroti:	Goodyear truck air spring , Rubber bellows suspension part , Truck air spring 1R9-003

566-18-3-004 Rubber Bellows 1R9-003 Goodyear Truck Suspension Air Spring

Product Overview

High-quality rubber bellows designed for truck suspension systems, providing reliable vibration reduction and durability.

Product Type	Rubber Bellows Truck Air Spring
Material	High Quality Rubber
Warranty	12 Months
Condition	Brand New
Application	Truck SAF
Function	Reduce Vibration
Color	Black
Delivery Time	2-8 working days

Compatible Part Numbers

GOODYEAR

1R9-003 566-18-3-004 566-16-7-021

AM GENERAL

5973923

AUTOMANN

AB1DK10B-5409

CONTI

6 6.5-13 S 056 68136

FIRESTONE

5409 5435 W01-358-5409 W01-358-5435

FLXIBLE

6-336-11

662743

NEW FLYER

5920815 5973877 5973923 5993113

Technical Specifications

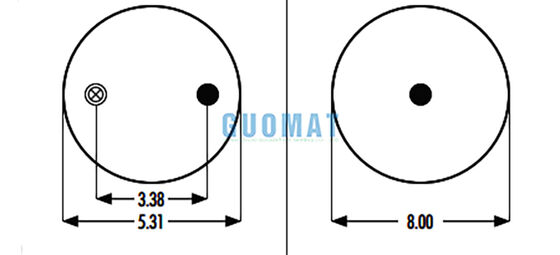

Top Plate Hole/Stud Quantity	2
Top Plate Diameter	5.31
Top Plate Center to Center Diameter	3.38
Bottom Plate Hole/Stud Quantity	1
Bottom Plate Diameter	8
Bottom Plate Center to Center Diameter	N/A
Bottom Plate Alignment	Parallel
Bumper	No
Bracket	N/A

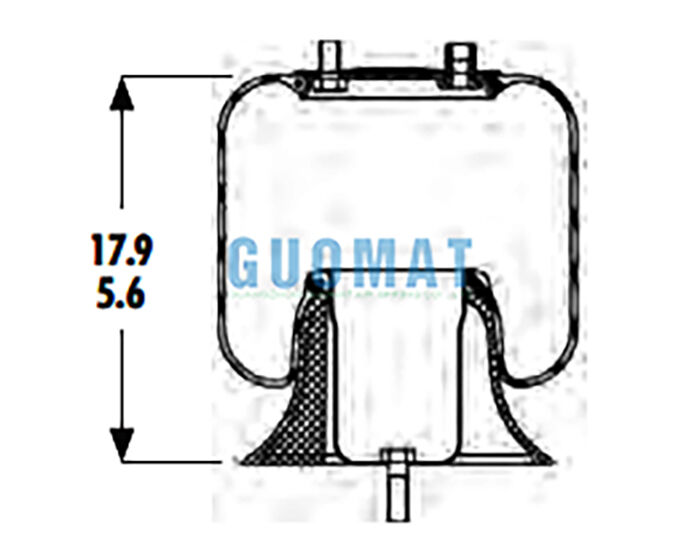

Minimum Height	5.6
Maximum Height	17.9

Goodyear Cross-Reference Data

Goodyear Number	Top Plate Qty	Bottom Piston Qty	Top Plate Dia	Bottom Plate Dia.	Collapsed Height	Flexmember	Piston
1R9-003	2	1	5.31	7.5	5.6	566-18-3-004	566-16-7-021
1R9-038	2	1	5.31	7.5	4	566-18-3-101	566-16-7-017
1R9-047	2	1	5.31	-	5.6	566-18-3-004	-
1R9-053	2	1	5.31	8	6.7	566-18-3-004	566-16-7-021
1R9-054	2	1	8.63	8.25	6.7	566-18-3-004	566-16-7-000
1R9-056	2	1	8.62	8.25	5.9	566-18-3-004	566-16-7-000
1R9-065	2	1	7.31	7.5	4.3	566-18-3-003	566-16-7-009
1R9-070	2	2	5.31	8	5.6	566-18-3-004	566-16-7-021
