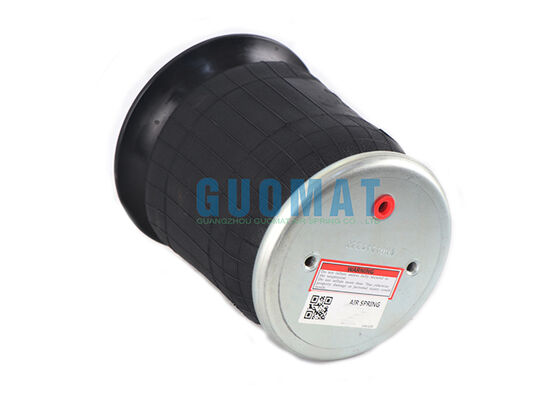

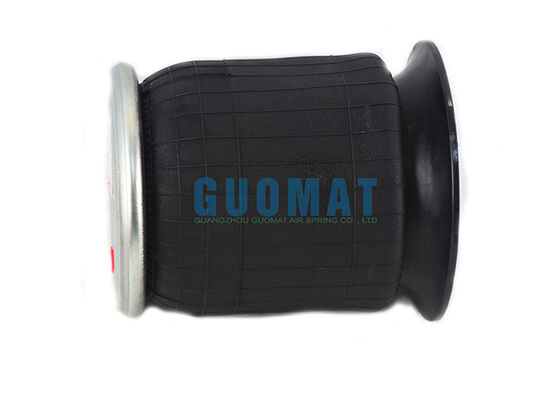

W01-358-5310 Firestone Air Suspension 1T14C-1 1/4 NPT Air Hole Heavy Duty Truck Air Spring

Detail produk:

Tempat asal:	Guangdong, Tiongkok
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949:2009
Nomor model:	1T5310

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	6 buah
Harga:	$89.9-99.9/pc
Kemasan rincian:	Kotak Karton Yang Kuat Atau Sesuai Kebutuhan Pelanggan
Waktu pengiriman:	2-8 hari kerja
Syarat-syarat pembayaran:	L/C,T/T,Western Union
Menyediakan kemampuan:	1000 buah/minggu

Kontak

Detil Deskripsi produk

Jenis:	Pegas Udara Suspensi	Bahan:	Logam dan karet
Kualitas:	100% Diuji	Kondisi harga:	FOB China
Nama Produk:	Pegas Udara Truk	MOQ:	6 buah
batu api:	W01-358-5310	Warna:	Hitam
Menyoroti:	Firestone truck air spring , heavy duty air suspension , 1/4 NPT air hole

W01-358-5310 Firestone Air Suspension 1T14C-1 1/4 NPT Air Hole Heavy Duty Truck Air Spring

W01-358-5310 Firestone Air Suspension 1T14C-1 1/4 NPT Air Hole Heavy Duty Truck Air Spring

Product Details

Item	Description
Product Category	Air Spring / Air Bellows / Pneumatic Shock Spring
Brand	GUOMAT or Neutral Packaging Available
Model	1T5310
Construction Material	Reinforced rubber with steel end plates
Warranty	12-month quality guarantee
Minimum Order Quantity	1 piece available if stock is on hand

Compatible with Other Brands & Their Part Numbers

Firestone Style Number: 1T14C-1

Firestone Assembly Order Number: W01-358-5310
Firestone Assembly Order Number: W01 358 5310
Firestone Assembly Order Number: W013585310
Firestone Assembly Order Number: WO1-358-5310
Firestone Assembly Order Number: WO1 358 5310
Firestone Assembly Order Number: WO13585310
Contitech Part Number: 6 6.5-11 S 030
Contitech Part Number: 66.5-11S030
Contitech Part Number: 68111
Contitech Bellows Number: 6 6.5-11
Triangle Number: AS-8030
TRP Number: AS53100
Automann Number: 1DK10-5310

Manufacturer	Original Part No.
American Carrier	9003-001
Hendrickson	S-8832
Ridewell	1003585310C
Flxible	6-336-2

Detailed Technical Specifications

Top cover diameter: 6.31 inches

Top cover threaded holes: 2pcs x 3/8-16UNC

Center distance between threaded holes: 3.5 inches

Center distance between threaded holes and vent: 1.75 inches

Vent: 1/4 NPT

Base diameter: 7.25 inches

Base height: 3.16 inches

Base threaded holes: 1/2-13UNC

Maximum outer diameter: 9.1 inches

Maximum height: 15 inches

Minimum height: 5 inches

Performance Specifications

Assembly Height (in.)	Volume@100PSIG(in3)	Pounds Force
		@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
12.0	376	540	1010	1530	2040	2600
11.0	347	570	1160	1770	2380	3010
10.0	314	590	1210	1880	2540	3220
9.0	280	590	1190	1890	2570	3240
8.0	246	580	1200	1890	2570	3240
7.0	211	620	1240	1920	2600	3300
6.0	176	740	1380	2060	2790	3530
