Truck Rolling Lobe Air Spring W01-358-9049 1T15LP-3 Firestone Auto Parts Replacement

Detail produk:

Tempat asal:	Guangdong, Tiongkok
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949:2009
Nomor model:	1T9049

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	6 buah
Harga:	$47.6-63/pc
Kemasan rincian:	Kotak Karton Yang Kuat Atau Sesuai Kebutuhan Pelanggan
Waktu pengiriman:	2-8 hari kerja
Syarat-syarat pembayaran:	L/C,T/T,Western Union
Menyediakan kemampuan:	1000 buah/minggu

Kontak

Detil Deskripsi produk

Kata kunci:	Musim Semi Udara	Bahan:	Karet Di Bawah+Pelat Segel Baja
Jaminan:	12 bulan	Layanan Ditawarkan:	OEM
Ukuran:	Ukuran standar OEM	MOQ:	1 buah
batu api:	W01-358-9049	Aplikasi:	Untuk Suspensi Truk
Menyoroti:	Truck air spring replacement , Firestone air spring W01-358-9049 , Rolling lobe air spring 1T15LP-3

Truck Rolling Lobe Air Spring W01-358-9049 1T15LP-3 Firestone Auto Parts Replacement

Truck Rolling Lobe Air Spring W01-358-9049 1T15LP-3 Firestone Auto Parts Replacement

Product Information

Product Name:	Truck Suspension Air Spring
Description:	Truck Spare Parts Air Spring Shock Absorber Spring
Brand	GUOMAT
Model Number	1T9049
MOQ:	1 PCS
Warranty:	12 Months
Material:	Rubber
Package:	Carton
Payment:	L/C, T/T, Western Union
Port of shipment	Huangpu, Nansha
Shippment:	By sea, By air, by express

Corresponding OEM Numbers

Firestone Truck Air Spring Style Numbers:
1T15LP-3
1T15S-6

Firestone Truck Air Spring Part Numbers:
W01-358-9049 / WO1-358-9049
W01 358 9049 / WO1 358 9049
W013589049 / WO13589049

Goodyear Numbers:
1R10-039 / 1R 10-039 / 1R10 039 / 1R10039

Granning Number:
6252

Blind nuts, 1/4NPT, bumper:
Firestone W013589049
Firestone W01 358 9049
Firestone W01-358-9049
Firestone WO13589049
Firestone WO1 358 9049
Firestone WO1-358-9049

Blind nuts, 3/4NPT:
Firestone W013589051
Firestone W01 358 9051
Firestone W01-358-9051
Firestone WO13589051
Firestone WO1 358 9051
Firestone WO1-358-9051

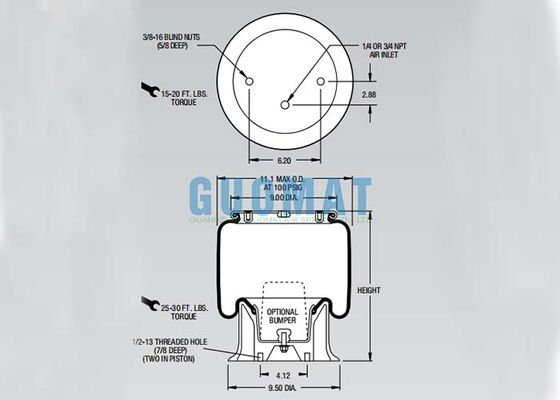

Detailed Technical Information

Top Cover Specifications:
• Diameter: 9.00 inches
• Two 3/8-16 bolts with center-to-center distance: 6.2 inches
• Air hole: 1/4 NPT
• Center-to-center distance between air hole and threaded holes: 2.88 inches

Base Specifications:
• Diameter: 9.25 inches
• One 1/2-13 bolt
• Includes buffer block

General Dimensions:
• Maximum outer diameter: 11.1 inches
• Natural height: 12.00 inches
• Maximum height: 19.00 inches
• Minimum height: 6.00 inches

Volume @ 100 PSIG = 625 in³ | Natural Frequency
