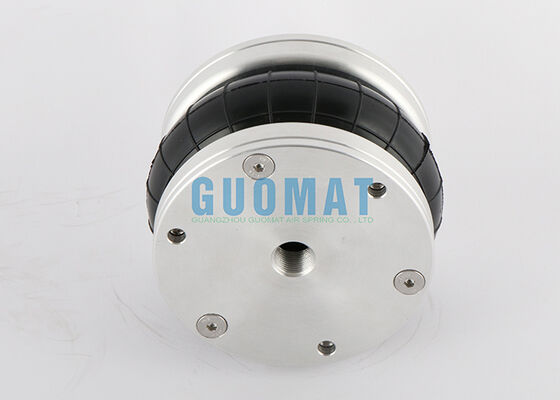

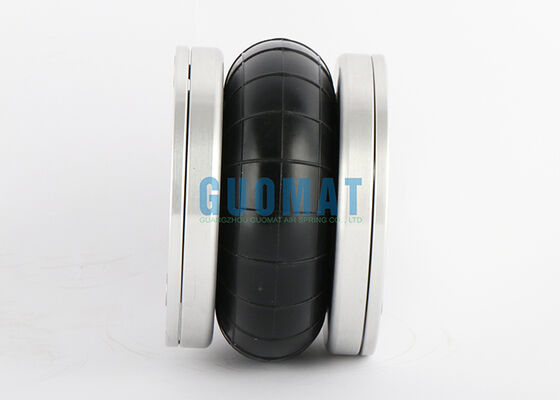

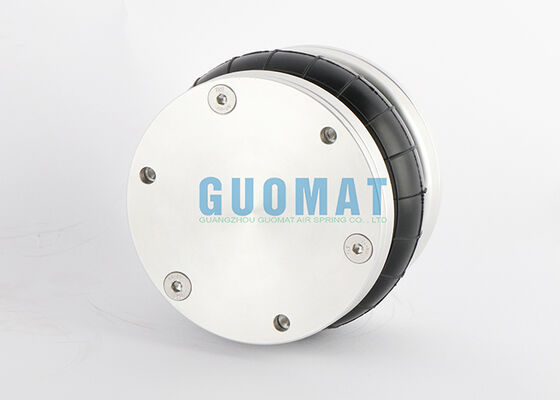

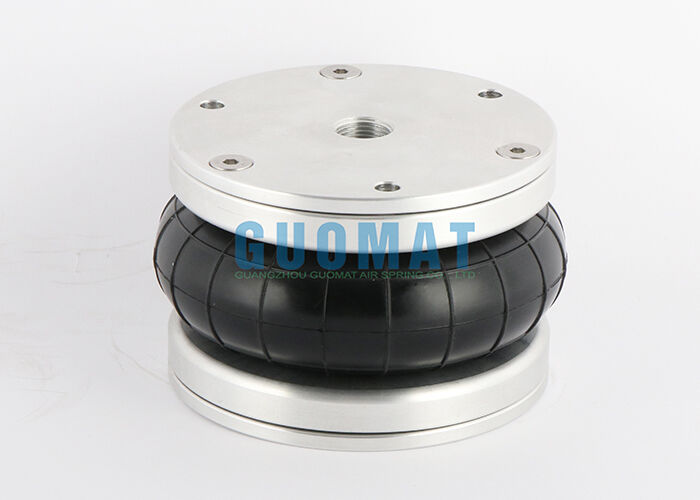

4 1/2" x 1 Rubber Bellow FS 44-5 DI CR Contitech Pneumatic Air Shock With Aluminum Cover Plate

4 1/2" x 1 Rubber Bellow FS 44-5 DI CR Contitech Pneumatic Air Shock With Aluminum Cover Plate

4 1/2" x 1 Rubber Bellow FS 44-5 DI CR Contitech Pneumatic Air Shock With Aluminum Cover Plate
4 1/2
4 1/2" x 1 Rubber Bellow FS 44-5 DI CR Contitech Pneumatic Air Shock With Aluminum Cover Plate
Detail produk:
Tempat asal: GUANGZHOU, CINA
Nama merek: GUOMAT
Sertifikasi: ISO/Ts16949:2009
Nomor model: 1B4.5X1T
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 6 buah
Harga: $99.9-$109.9
Kemasan rincian: Pengemasan atau kemasan karton sesuai dengan kebutuhan pelanggan
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: L/C,T/T,Western Union
Menyediakan kemampuan: 10.000 per minggu
Kontak
Detil Deskripsi produk
Nama barang: Flange Air Spring Fungsi: Mengurangi Kejutan
Paket Transportasi: Karton yang kuat jenis: Berisi gas
Konvolusi: 1 Teknologi Contitech: FS 44-5 DI
Bahan: Karet + Aluminium batu api: W01R584050
Menyoroti:

Rubber bellow pneumatic air shock

,

Contitech industrial air spring

,

Aluminum cover plate air shock

4 1/2" x 1 Rubber Bellow FS 44-5 DI CR Contitech Pneumatic Air Shock With Aluminum Cover Plate
Industrial Air Spring with Flange designed for pneumatic applications and vibration isolation systems.
Product Specifications
Item: Industrial Air Spring with Flange
GUOMAT No.: 1B4.5X1T
Convolutions: 1
Type: Flange Type
Style: Gas-Filled
Compatible Part Numbers
Continental ContiTech: FS 44-5 70205
Continental ContiTech: FS 44-5 DI CR 70205
Continental ContiTech: FS 44-5 G3/8 M6
Continental ContiTech: FS 44-5 DI CR G3/8
Continental ContiTech: FS 44-5 DI CR G3/8 M6
Continental ContiTech: FS 44-5 DI G3/8 CR
Continental ContiTech: FS 44-5 DICR/FS44-5DICR/FS445DICR
Continental ContiTech Bellow: FS 44-5/FS44-5/FS445
Firestone No.: W01-R58-4050/W01R58 4050/W01R584050
Firestone Style: 4½"x1/4½"x1/4½x1
Dunlop FR: 4½"x1 SP2334
Dunlop UK (Pneuride): PNP 30559 0106/PNP305590106
Norgren: M/31041/M 31041/M31041
Nominal 0 (inch)x convolutions: 4½"x1/4½"x1/4½x1
Parker: 9109400
Contitech FS44-5 DI Technical Data
Top cover plate: 110mm diameter, 3x M6 threaded holes, 93mm bolt center distance, G3/8 vent
Bottom cover plate: 110mm diameter, 3x M6 threaded holes, 93mm bolt center distance
Maximum outer diameter: 125mm
Maximum height: 90mm
Minimum height: 50mm
Vibration Isolation - Dynamic Characteristic Values
Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
Force(Load) (KN) 1.5 2.1 2.7 3.2 3.8 4.4 0.27
Spring Rate (N/mm) 112 141 169 198 226 253
Natural Frequency f0 (Hz) 4.2 4.1 4.0 3.9 3.8 3.8
Pneumatic Application - Static Characteristic Values
Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
Height H(mm) 80 1.02 1.44 1.87 2.3 2.74 3.2 0.32
Height H(mm) 70 1.58 2.15 2.7 3.3 3.88 4.5 0.27
Height H(mm) 60 2.17 2.89 3.62 4.3 5.08 5.85 0.22
4 1/2" x 1 Rubber Bellow FS 44-5 DI CR Contitech Pneumatic Air Shock With Aluminum Cover Plate 0 4 1/2" x 1 Rubber Bellow FS 44-5 DI CR Contitech Pneumatic Air Shock With Aluminum Cover Plate 1
