Norgren M/31082 Double Convoluted Type Air Spring 8" Nominal Diameter Rubber Air Bellow

Norgren M/31082 Double Convoluted Type Air Spring 8" Nominal Diameter Rubber Air Bellow

  • Norgren M/31082 Double Convoluted Type Air Spring 8" Nominal Diameter Rubber Air Bellow
  • Norgren M/31082 Double Convoluted Type Air Spring 8" Nominal Diameter Rubber Air Bellow
  • Norgren M/31082 Double Convoluted Type Air Spring 8" Nominal Diameter Rubber Air Bellow
  • Norgren M/31082 Double Convoluted Type Air Spring 8" Nominal Diameter Rubber Air Bellow
Norgren M/31082 Double Convoluted Type Air Spring 8" Nominal Diameter Rubber Air Bellow
Detail produk:
Tempat asal: Guangdong, Tiongkok
Nama merek: NORGREN
Sertifikasi: ISO/TS16949:2009
Nomor model: M/31082
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 6 buah
Harga: dapat dinegosiasikan
Kemasan rincian: Kotak Karton Yang Kuat Atau Sesuai Kebutuhan Pelanggan
Waktu pengiriman: 2-8 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, L/C
Menyediakan kemampuan: 1000pcs/Minggu
Kontak
Detil Deskripsi produk
Bahan: Karet Alam + Aluminium Warna: Hitam
Kemasan: Kemasan Karton Coklat Netral Fungsi: Penyerapan Guncangan
Operasi: Berisi gas Nama Produk: Norgren Air Bellow
Nomor bagian: M/31082 Panjang stroke: 175mm
Menyoroti:

Norgren double convoluted air spring

,

8 inch rubber air bellow

,

industrial air spring with warranty

Norgren M/31082 Double Convoluted Type Air Spring
8" Nominal Diameter Rubber Air Bellow
Norgren M/31082 Air Spring is a high-quality industrial pneumatic bellows designed for vibration isolation, shock absorption, and precise load support in automated equipment and machinery systems.
Product Identification
  • NORGREN: M/31082
  • NORGREN: M 31082
  • NORGREN: M31082
  • NORGREN: 8X2
  • NORGREN: 8''X2
Technical Specifications
Physical Dimensions
  • Top cover plate diameter: 184 mm with four M10 threaded holes
  • Bolt center spacing: 155.5 mm
  • Air port: G1/2
  • Bottom cover plate diameter: 184 mm with four M10 threaded holes
  • Bolt center spacing: 155.5 mm
  • Maximum outer diameter: 225 mm
  • Maximum height: 250 mm
  • Minimum height: 175 mm
Performance Data - Force and Spring Rate
Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
Force (Load) KN 3.9 5.3 6.7 8.2 9.7 11.3 4.1
Spring Rate N/cm 760 970 1185 1400 1610 1815
Natural Frequency f0 Hz 2.2 2.2 2.1 2.1 2.1 2
Performance Data - Height vs Pressure
Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
Height H(mm) 220 2.9 4 5.2 6.4 7.7 9 4.3
Height H(mm) 200 3.9 5.3 6.7 8.2 9.7 11.3 4.1
Height H(mm) 150 5.9 8 10.1 12.4 14.7 16.9 3.2
Height H(mm) 100 8.2 11 13.7 16.6 19.4 22.4 2
Cross-Reference Part Numbers
  • Contitech FD138-18 DS
  • Contitech FD 138-18 DS
  • Contitech FD138-18 DS G1/2 M10
  • Contitech FD 138-18 DS G1/2 M10
  • Firestone 8X2
  • Firestone 8''X2
  • Firestone W01R584055
  • Firestone W01 R58 4055
  • Firestone W01-R58-4055
  • Goodyear 2B8-2150
  • Goodyear 2B8 2150
  • Goodyear 2B82150
  • Goodyear 5789232150
  • Goodyear 578 92 3 2150
  • Goodyear 578-92-3-2150
  • Dunlop FR 8''X2 SP1490
  • Dunlop FR 8''X2 SP918
  • Dunlop UK(Pneuride) PNP305500112
  • Dunlop UK(Pneuride) PNP 30550 01 12
  • GUOMAT 2B8X2T

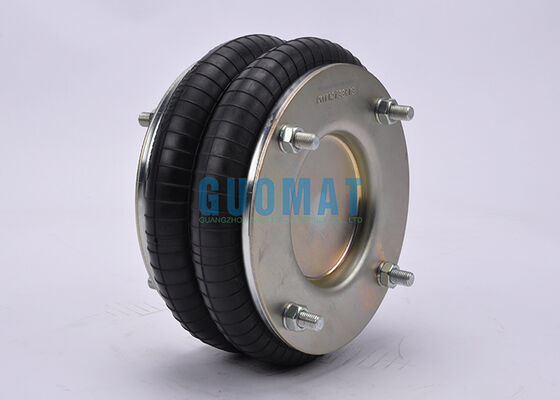

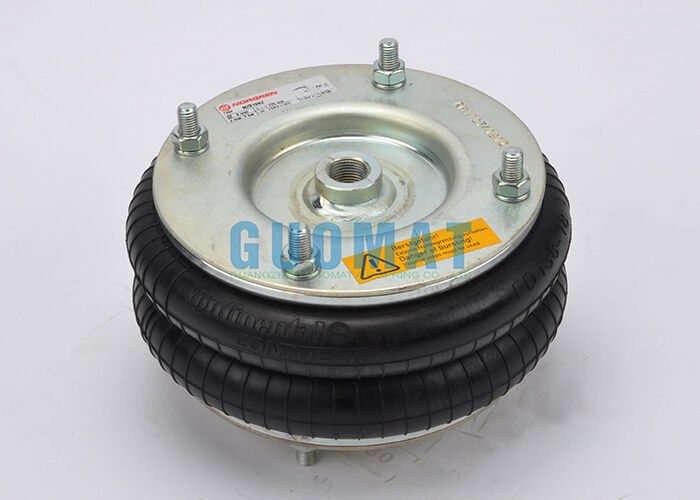

Product Images
Norgren M/31082 Double Convoluted Type Air Spring 8" Nominal Diameter Rubber Air Bellow 0 Norgren M/31082 Double Convoluted Type Air Spring 8" Nominal Diameter Rubber Air Bellow 1

Label:

pegas penolong udara,

bagian suspensi udara,

pegas udara berbelit-belit
