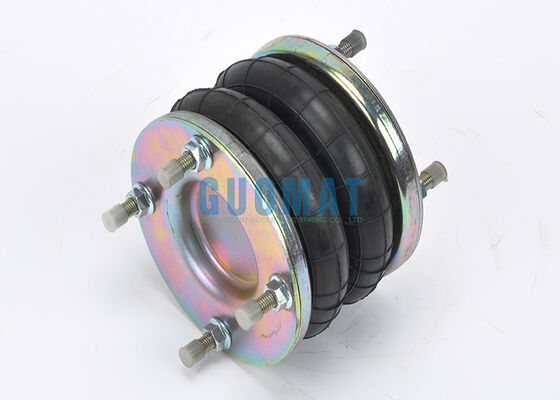

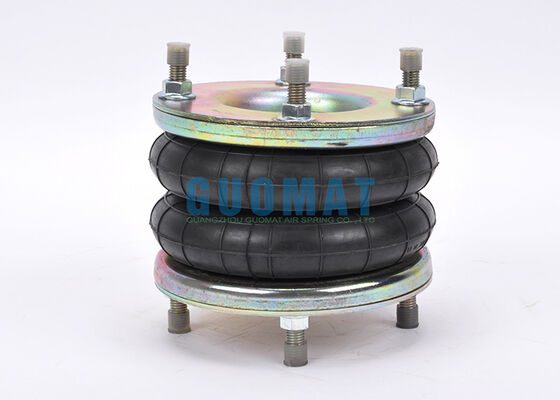

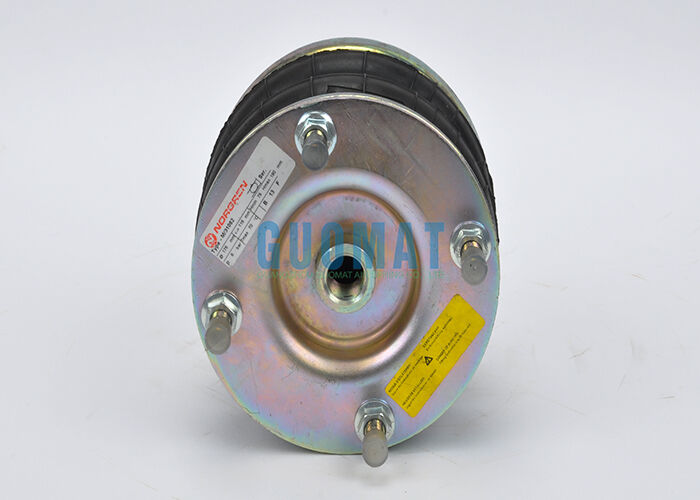

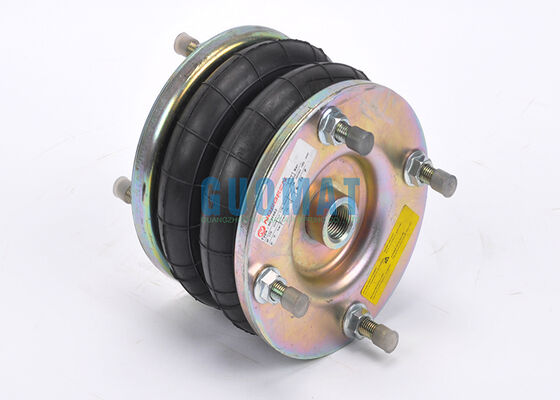

6" Diameter Norgren Air Spring M/31062 Industrial Air Bellows For Spinning Machine

Detail produk:

Tempat asal:	Guangdong, Tiongkok
Nama merek:	NORGREN
Sertifikasi:	ISO/TS16949:2009
Nomor model:	M/31062

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	6 buah
Harga:	dapat dinegosiasikan
Kemasan rincian:	Kotak Karton Yang Kuat Atau Sesuai Kebutuhan Pelanggan
Waktu pengiriman:	2-8 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, L/C
Menyediakan kemampuan:	1000pcs/Minggu

Kontak

Detil Deskripsi produk

Bahan:	Karet Alam + Aluminium	Warna:	Hitam
Fungsi:	Penyerapan Guncangan	Operasi:	Berisi gas
Nama Produk:	Norgren Air Bellow	NORGEN:	M/31062
Jumlah konvolusi:	2	Berat:	2.2KG
Menyoroti:	6 inch Norgren air spring , industrial air bellow spinning machine , M/31062 air spring with warranty

Norgren M/31062 Industrial Air Spring

The Norgren M/31062 is a high-performance double convoluted industrial air bellows designed for vibration isolation, lifting, and tension control applications in spinning and textile machinery.

With a 6-inch nominal diameter and 115 mm stroke, this original Norgren air spring provides stable force output, smooth motion, and excellent shock absorption during continuous machine operation.

Widely used in spinning machines, winding systems, textile production lines, and other precision industrial equipment, the M/31062 air spring helps reduce vibration transmission, improve machine stability, and extend equipment service life. Its reinforced rubber bellows and steel mounting structure ensure reliable performance under long-term cyclic loading conditions.

Product Specifications

Technical Data

Top cover plate: 153.5 mm diameter with four M10 threaded holes (127 mm bolt center distance)
Bottom cover plate: 153.5 mm diameter with four M10 threaded holes (127 mm bolt center distance)
Air port specification: G1/2
Maximum outer diameter: 175 mm
Maximum height: 190 mm
Minimum height: 75 mm

Performance Data - Force and Spring Characteristics

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Force (Load) KN	2.7	3.7	4.7	5.7	6.7	7.8	2
Spring Rate N/cm	650	830	1015	1185	1360	1530
Natural Frequency f0 Hz	2.5	2.4	2.3	2.3	2.3	2.2

Performance Data - Height vs Pressure

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Height H(mm) 170	2.2	3	3.8	4.7	5.6	6.5	2.1
Height H(mm) 150	2.8	3.9	4.9	6	7.1	8.2	1.9
Height H(mm) 130	3.5	4.7	5.9	7.1	8.4	9.7	1.7
Height H(mm) 110	4.1	5.4	6.8	8.2	9.6	11.1	1.4
Height H(mm) 90	4.7	6.3	7.9	9.5	11.1	12.8	1.1
