FD 330-22 364 Contitech Rubber Air Spring 2B12-313 Goodyear Pneumatic Vibration Isolator

Detail produk:

Tempat asal:	Guangdong, Tiongkok
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949:2009
Nomor model:	3B7808

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	6 buah
Harga:	$69.9/pc-$79.9/pc
Kemasan rincian:	Kotak Karton Yang Kuat Atau Sesuai Kebutuhan Pelanggan
Waktu pengiriman:	2-8 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, L/C
Menyediakan kemampuan:	1000pcs/Minggu

Kontak

Detil Deskripsi produk

Nama barang:	Musim semi udara karet	Bahan Musim Semi:	Karet
Kemasan:	Kotak Karton Coklat	Jaminan:	1 Tahun
Aplikasi:	Peralatan Pengeboran	No. No.:	Batu Api W01-358-7808
Nama Lain:	Kantong Karet Bellow	Konvolusi:	3

FD 330-22 364 Contitech Rubber Air Spring 2B12-313 Goodyear Pneumatic Vibration Isolator

Product Description
Item Name: Rubber Air Spring

GUOMAT NO.: 3B7808

Warranty: 1 Year

Material: Rubber+Steel

Replacement Part Number

Cross Number

OEM Number

Firestone W01-358-7808

Firestone 313

Contitech FD 330-22 364

Goodyear 2B12-313

Goodyear 2B12-459

Goodyear 578-93-3-350

Triangle 6319

Triangle 4336

Airkraft 115061

Airkraft 3B-356

Brake&Wheel:M3533

EI Ride: 8030170

Dayton: 3547808

Leland: Sc2031

Navistar: 554801C1

Hendrickson: S13157

Ridewell: 1003587808C

SAF Holland: 57007808

Truck Stell: 63640

Peerless: 55000030

Technical Data

Overall length: 356 mm

Height/dimension: 282 mm

Center threaded port: 1/4 NPT (tapered pipe thread)

Four threaded holes: 3/8-16 UNC

Width: 289 mm

Repeated dimension: 158.8 mm (likely hole spacing or symmetric offset)

Rubber Air Spring for Die Cushion

A Rubber Air Spring for a Die Cushion is a pneumatic elastomer spring used in stamping and press machines to provide controlled counterforce during deep drawing, forming, and blank-holding operations. It is commonly used as a replacement for conventional coil springs, rubber pads, or hydraulic cushions because it provides a more uniform force throughout its stroke.

How it works

A rubber air spring consists of reinforced rubber bellows filled with compressed air. As the press operates, the air spring compresses and generates a nearly constant force over a wide range of travel, helping:

1.Control material flow during forming
2.Reduce wrinkling and tearing
3.Absorb shock loads
4.Improve part quality and tool life

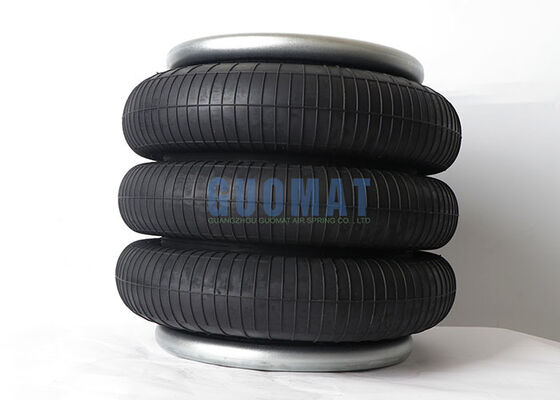

FD 330-22 364 Contitech Rubber Air Spring 2B12-313 Goodyear Pneumatic Vibration Isolator 0

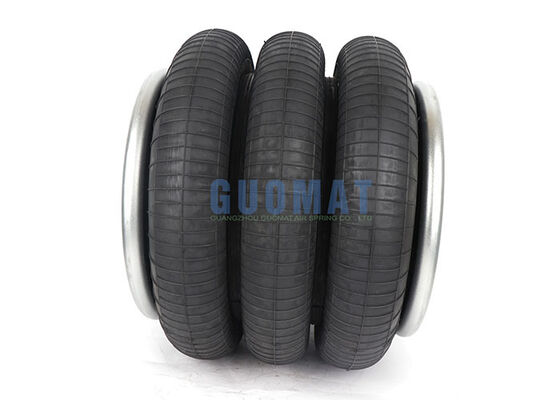

FD 330-22 364 Contitech Rubber Air Spring 2B12-313 Goodyear Pneumatic Vibration Isolator 1
