16" X 3 Rubber Air Bellows W01R584068 Firestone Air Suspension Isolator With Flange

Detail produk:

Tempat asal:	Guangdong, Tiongkok
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949:2009
Nomor model:	3B16X3T

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	6 buah
Harga:	dapat dinegosiasikan
Kemasan rincian:	Kotak Karton Yang Kuat Atau Sesuai Kebutuhan Pelanggan
Waktu pengiriman:	2-8 hari kerja
Syarat-syarat pembayaran:	Western Union,T/T,D/P,D/A,L/C
Menyediakan kemampuan:	1000pcs/Minggu

Kontak

Detil Deskripsi produk

Suhu Kerja:	-40℃+70℃	Lilitan:	3
Garansi Pabrik:	1 Tahun	Asal:	Cina
Kode Hs:	8708809000	Barang:	Musim semi udara karet
Bahan:	Karet Berkualitas Tinggi	batu api:	W01-R58-4068
Menyoroti:	16 inch rubber air bellows , Firestone air suspension isolator , flanged rubber air spring

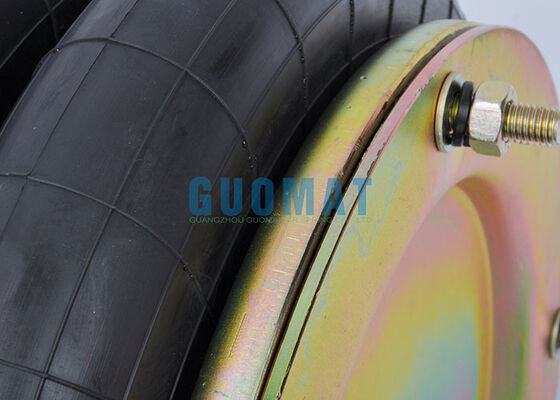

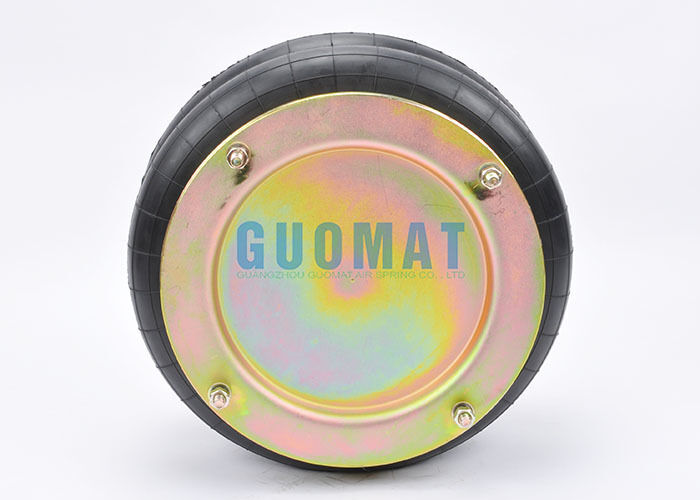

16" X 3 Rubber Air Bellows W01R584068 Firestone Air Suspension Isolator With Flange

High-quality replacement air spring bellow designed for industrial suspension systems, featuring a durable rubber construction with integrated steel flange.

Product Specifications

Brand: GUIOMAT

Type: Flange Air Spring

Model No.: 3B16X3T

Rubber No.: 16''X3

Warranty: 1 Year

Material: Rubber and Steel

Compatible Part Numbers

Firestone Rubber Bellows 16X3/16''X3
Firestone W01R584068/W01 R58 4068/W01-R58-4068
Dunlop SP2141
Contitech FT816-40DS/FT816-40DS/FT 816-40 DS
Norgren M/31163
Parker 9109177

Technical Specifications

Air port inlet	G1/2''
Rec/Max pressure(bar)	5,5/8
Force(N)@0 bar to H(mm)	200(120)
Weight(KG)	12.50

Max.outer dia.	440mm
Suitable installation width	460mm
Min.H	125mm
Max.H	500mm
H recommended	475mm

Pressure and Height Performance Data

Height H(mm)	3 BAR	4 BAR	5 BAR	6 BAR	7 BAR	8 BAR	Vol.v
125	3326	4427	5497	6552	7652	8730	15275
200	3030	3996	4946	5951	6869	7827	23205
250	2799	3702	4577	5549	6355	7252	26747
300	2556	3383	4193	5121	5828	6664	29768
350	2284	3024	3791	4615	5281	6058	32611
400	1968	2618	3331	4029	4637	5337	34990
450	1592	2153	2745	3267	3809	4380	87131
500	1209	1667	2126	2469	2930	3365	39048
