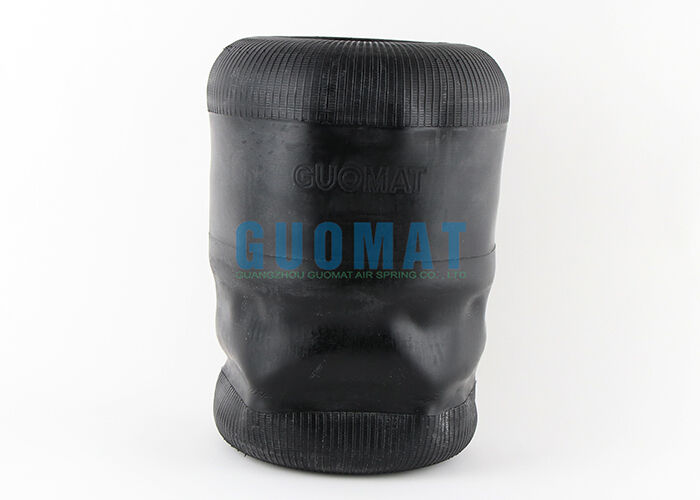

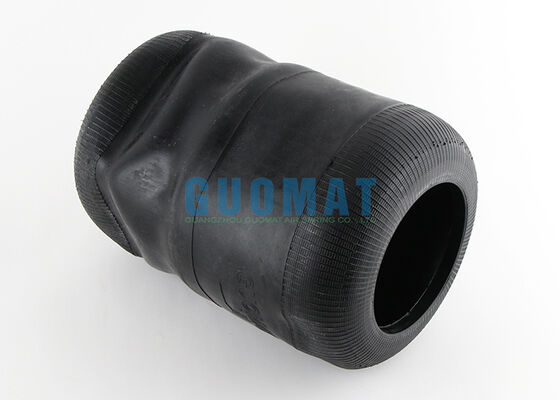

701N Contitech Rubber Air Actuator W01-095-0205 Firestone Bus Suspension Air Spring 1R3M340-340

Detail produk:

Tempat asal:	Cina
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949:2009
Nomor model:	701N

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	6 buah
Harga:	US$19.9-29.9/PC
Kemasan rincian:	Kotak Karton Yang Kuat Atau Sesuai Kebutuhan Pelanggan
Waktu pengiriman:	3-7 hari kerja
Syarat-syarat pembayaran:	L/C,D/A,D/P,T/T,Western Union
Menyediakan kemampuan:	1000pcs/Minggu

Kontak

Detil Deskripsi produk

Nama Barang:	Pegas Udara Bus	Warna:	Hitam
Kisaran Suhu:	30℃~40℃	Mencicipi:	Diterima
Tinggi:	345mm	Berat:	1.75kg
Aplikasi:	Untuk Penangguhan Bus	Teknologi Contitech:	701N
Menyoroti:	Contitech rubber air actuator , Firestone bus suspension air spring , 1R3M340-340 bus air spring

701N Contitech Rubber Air Actuator W01-095-0205 Firestone Bus Suspension Air Spring 1R3M340-340

Rubber air bags installed between the wheels and the vehicle body adjust the ride height and damping effect through inflation and deflation.

Product Specifications

Type: Bus Air Spring
Brand: GUOMAT
Model No.: 701N
Warranty: 1 Year
Material: Rubber

Corresponding OEM Numbers

CONTITECH: 701N
FIRESTONE: W01-095-0205
FIRESTONE: 1R3M340-340
GOODYEAR: 9006
PHOENIX: 1E26-1
TAURUS: B116-1

IKARUS	B510040
IKARUS	B.551040
BOVA	B 510040
AUWARTER	B 510040

Technical Data

Weight	1.75kg
Design Height	345mm
Outer Diameter	260mm
Opening Diameter	179mm
Working Stroke	230mm
Measurement D Max	330mm
Space Required	350mm
Loading Cap.at 1.0 bar	5.2kN
Loading Cap.at 7.0 bar	32.0kN

GUOMAT Roll Air Spring Cross-Reference

GUOMAT	CONTITECH	FIRESTONE	GOODYEAR	PHOENIX
644N	644N	W01-095-0118	8017	1E21
661N	661N	W01-095-0021	8018	1E25
662N	662N	W01-095-0207	9007	1E32
673N	673N	W01-095-0198	9051	1F21A
701N	701N	W01-095-0205	9006	1E26-1
706N	706N
713N	713N
715N		W01-095-0087	8015	1F25
716N		W01-095-0145		1F26B-1
719N	719N	W01-095-0192	8118	1F32B
720N		W01-095-0195	9008	1F21
727N		W01-095-0191	8117	1F32A
728N		W01-095-0419		1F32A-2
737N		W01-095-0211		1F26
746N
757N		W01-095-0212		1F26C
762N		W01-095-0190	9010	1F32
768N		W01-095-0213
769N		W01-095-0204	8053	1E18
775N
782N		W01-095-0197	9013	1E21D
786N		W01-095-0436		1F14
