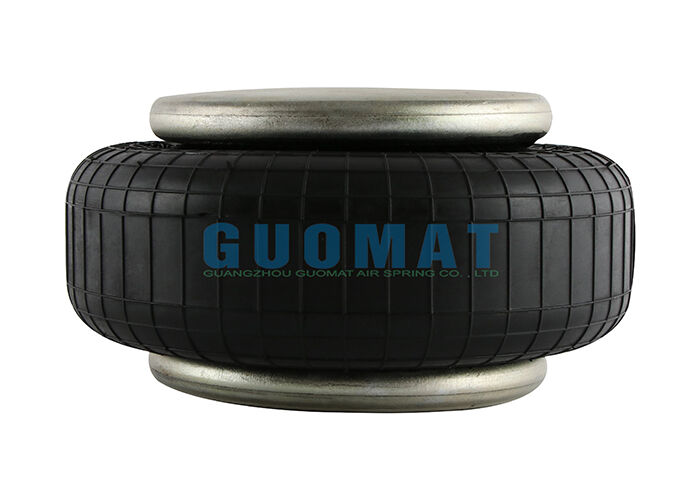

W01-358-7598 Firestone Shock Absorbing Air Spring 1B8-580 Goodyear Rubber Air Bags

Detail produk:

Tempat asal:	Cina
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949:2009
Nomor model:	1B8X6

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	6 buah
Harga:	US$49.9-59.9/PC
Kemasan rincian:	Kotak Karton Yang Kuat Atau Sesuai Kebutuhan Pelanggan
Waktu pengiriman:	3-7 hari kerja
Syarat-syarat pembayaran:	L/C,D/A,D/P,T/T,Western Union
Menyediakan kemampuan:	1000pcs/Minggu

Kontak

Detil Deskripsi produk

Nama Barang:	Mata Air Industri	Kualitas:	100% Diuji
Jenis Perlengkapan:	Penggantian Langsung	Diameter pelat:	135mm
Sedang mengemas:	Pengepakan Netral	Kemasan:	Kemasan Karton Coklat Netral
Warna:	Hitam	Jenis:	Kantong Air Spring Tunggal
Menyoroti:	Firestone shock absorbing air spring , Goodyear rubber air bags , Industrial air spring with warranty

W01-358-7598 Firestone Shock Absorbing Air Spring 1B8-580 Goodyear Rubber Air Bags

The GUOMAT 1B8X6 industrial air spring is a single-convoluted model designed for shock absorption, vibration isolation, and impact mitigation in industrial equipment. Featuring a construction that combines a high-strength rubber bellows with steel end caps, it utilizes compressed air to provide flexible, resilient support; this effectively reduces vibration, shock, and noise during operation, thereby enhancing the stability of the machinery.

Product Specifications

Type	Rubber Air Spring
Brand	GUOMAT
Model No.	1B8X6

Cross-Reference Part Numbers

Firestone Style: 116-1
Firestone Numbers: W01-358-7598 / WO1-358-7598 / W01 358 7598 / WO1 358 7598 / W013587598 / WO13587598
Goodyear Numbers: 1B8-580 / 1B 8-580

Technical Specifications

Cover plate diameter	135mm
Air hole	1/4-18NPF
Threaded hole	3/8-16UNC
Center-to-center distance between threaded holes	70mm
Outer diameter	190mm
Height	157mm

Performance Data

Assembly Height (in.)	Volume@100PSIG (in³)	Pounds Force
		@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
6.0	237	360	750	1150	1580	2090
5.0	210	540	1100	1650	2240	2920
4.0	178	650	1330	2000	2710	3490
3.0	139	710	1450	2200	2980	3810

Industrial Shock Absorption Applications

During industrial production, machinery operating at high speeds, undergoing frequent start-stop cycles, or subjected to fluctuating loads generates significant shock forces and vibrations. These impacts can compromise operational stability, accelerate wear on precision components, shorten equipment lifespan, and increase noise levels in the workplace.

The GUOMAT 1B8X6 industrial air spring utilizes a high-strength rubber bellows and a compressed-air elastic support structure. It effectively absorbs shock energy generated during equipment operation and minimizes the transmission of vibration to the foundation. By adjusting the internal air pressure, the support stiffness can be fine-tuned to match specific equipment weights and operating conditions, ensuring precise shock absorption and cushioning performance.

Ideal Applications

Shock-cushioning systems for automated production equipment
Vibration absorption units for stamping and forging machinery
Vibration isolation systems for industrial test platforms and laboratory equipment
Vibration damping for rotating machinery (compressors, motors, pump sets, etc.)
Vibration control for precision machining equipment

Compared to traditional metal springs, the GUOMAT 1B8X6 air spring offers a lower natural frequency, superior vibration isolation, and adjustable load-bearing capacity. It helps maintain smooth equipment operation, reduces wear caused by mechanical shock, and enhances both production efficiency and equipment reliability.
