| Tempat asal: | Guangdong, Cina |
| Nama merek: | GUOMAT |
| Sertifikasi: | ISO/TS16949:2009 |
| Nomor model: | 2B6910 |
| Kuantitas min Order: | 1pc |
|---|---|
| Kemasan rincian: | kotak karton yang kuat atau sesuai kebutuhan pelanggan |
| Waktu pengiriman: | 2-8 hari kerja |
| Syarat-syarat pembayaran: | T / T, Western Union, Paypal atau Lainnya |
| Menyediakan kemampuan: | 1000pcs/minggu |
| Bahan: | Pelat penutup baja, bellow karet | TAHUN YANG BAIK: | 2B9-200 |
|---|---|---|---|
| Lubang Gas: | 1 / 4NPTF | Sekrup gigi: | 3 / 8-16UNC |
| Jarak Pusat Ulir: | 89 mm | Diameter Plat Penutup: | 160 mm |
| Kemampuan Tekanan: | 0,2-0,8 M Pa | Pukulan: | 75 ~ 260 mm |
| Berat bersih: | 3,35 kg | Ukuran paket: | 24 * 24 * 24 CM |
| Cahaya Tinggi: | pegas penolong udara,bagian suspensi udara |
||

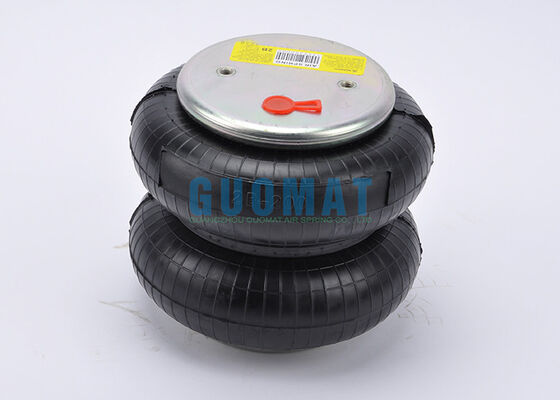

2B9-200 Goodyear Air Spring Untuk SAF Holland 57006910 Chassis Suspension Spring
GUOMAT 2B6910 Parameter teknis
❶Kacang / Kacang Buta
Sekrup Pelat Penutup Atas (Kacang) Gigi: 2 pcs X 3 / 8-16UNC
Jarak Pusat Sekrup dari Pelat Penutup Atas: 89 mm
Sekrup Pelat Penutup Bawah (Kacang) Gigi: 2 pcs X 3 / 8-16UNC
Jarak Pusat Sekrup dari Pelat Penutup Bawah: 89 mm
❷ Lubang Gas / Lubang Masuk Udara / Pemasangan Udara
Lubang Masuk Gas / Udara: 1 / 4-18NPTF
Jarak Pusat Ulir Antara Lubang Gas dan Mur: 44,5 mm
❸ Pelat penutup
Diameter Pelat Penutup Atas: 160 mm
Diameter Pelat Penutup Bawah: 160 mm
❹Bellow Karet
Rubber Bellows MAX Diameter: 251 mm
Bellow Karet Diameter Alami: 224 mm
Stroke yang Berfungsi: MIN 75 mm hingga MAX 260 mm
Tinggi Maksimal: 274 mm
Tinggi Minimum: 95mm
Tinggi Stroke: 179mm
❺ Blok bumper / blok penyangga
Tanpa Bumper Block
❻ Girdle Hoop / Girdle Ring
Dengan Girdle Hoop: One Piece of Girdle Hoop
2B6910 Lintas lainnya OEM
| Referensi OEM | Referensi OEM |
| Granning: 1371 | Taurus: AS218-6910 |
| Triangle Spring: 4320 | Dallas Spring: AS6910 |
| Firestone: 6910 | Sirco: AS-6910 |
| Conti Tech: 64267 | Midland / Haldex: CS209200 |
| Truk Litbang: 1027405 | Aftermarket Euclid / Meritor: E-FS6910 |
| Ridewell: 1003586910C | Conti Tech: FD200-19320 |
| Batco: 10-96910 | Aftermarket Euclid / Meritor: FS6910 |
| Reyco: 23704-01 | BWP: M-3501 |
| Hendrickson: 45843-3 | HD Amerika: PMABG-6910B |
| Navistar / IHC: 554783C1 | Ridewell: S4512C |
| UCF / Impex: AB-2B9-200 | Leland: SC201 |
| Automann: ABSP2B12R-6910 | Leland: SC2011 |
| Watson & Chalin: AS0001 |
Jenis lain dari goodyear yang dimiliki GUOMAT:
| Nomor GUOMAT | Nomor perakitan | Max OD @ 100 PSIG (Inci) | Rentang Beban Desain (pound) | Rentang Ketinggian Desain (Inci) | Stroke yang Dapat Digunakan (Inci) | Min Comp Tinggi (Inci) | Max Ext Tinggi (Inci) | Termasuk bumper | Perkiraan Persentase Isolasi | Air Fitting Size (Inches) | |||
| Untuk Frekuensi Pendistribusian: | |||||||||||||
| 435 CPM | 870 CPM | 1160 CPM | 1750 CPM | ||||||||||
| 1B9 201 | 1B9-201 | 11 | 640 - 3.900 | 4.5 - 5.0 | 2.7 | 3.2 | 5.9 | IYA | 84 | 96 | 97 | 99 | 1/4 OS |
| 1B9 202 | 1B9-202 | 11 | 640 - 3.900 | 4.5 - 5.0 | 3.6 | 2.3 | 5.9 | TIDAK | 84 | 96 | 97 | 99 | 1/4 OS |
| 1B9 204 | 1B9-204 | 11 | 640 - 3.900 | 4.5 - 5.0 | 3.6 | 2.3 | 5.9 | TIDAK | 84 | 96 | 97 | 99 | 1/2 OS |
| 1B9 205 | 1B9-205 | 11 | 640 - 3.900 | 4.5 - 5.0 | 2.7 | 3.2 | 5.9 | IYA | 84 | 96 | 97 | 99 | 1/2 OS |
| 1B9 207 | 1B9-207 | 11 | 640 - 3.900 | 4.5 - 5.0 | 3.6 | 2.3 | 5.9 | TIDAK | 84 | 96 | 97 | 99 | 3/4 OS |
| 1B9 208 | 1B9-208 | 11 | 640 - 3.900 | 4.5 - 5.0 | 2.7 | 3.2 | 5.9 | IYA | 84 | 96 | 97 | 99 | 3/4 OS |
| 2B12 309 | 2B12-309 | 13 | 900 - 7.205 | 7,5 - 9,5 | 6.9 | 4.2 | 11.1 | IYA | 92 | 98 | 98 | 99 | 1/4 OS |
| 2B12 318 | 2B12-318 | 13 | 900 - 7.205 | 7,5 - 9,5 | 6.9 | 4.2 | 11.1 | IYA | 92 | 98 | 98 | 99 | 3/4 OS |
| 2B12 416 | 2B12-416 | 13.7 | 1.300 - 8.100 | 7,5 - 9,5 | 10.9 | 3.5 | 14.4 | TIDAK | 92 | 98 | 99 | 99 | 1/4 OS |
| 2B12 419 | 2B12-419 | 13.7 | 1.300 - 8.100 | 7,5 - 9,5 | 10.9 | 3.5 | 14.4 | TIDAK | 92 | 98 | 99 | 99 | 3/4 OS |
| 2B12 425 | 2B12-425 | 13 | 900 - 7.205 | 7,5 - 9,5 | 7.6 | 3.5 | 11.1 | TIDAK | 92 | 98 | 98 | 99 | 1/4 OS |
| 2B12 429 | 2B12-429 | 13 | 900 - 7.205 | 7,5 - 9,5 | 7.6 | 3.5 | 11.1 | TIDAK | 92 | 98 | 98 | 99 | 3/4 OS |
| 2B12 437 | 2B12-437 | 13 | 900 - 7.205 | 7,5 - 9,5 | 7.6 | 3.5 | 11.1 | TIDAK | 92 | 98 | 98 | 99 | 1/4 C |
| 2B12 440 | 2B12-440 | 13.7 | 1.300 - 8.100 | 7,5 - 9,5 | 10.6 | 3.8 | 14.4 | IYA | 92 | 98 | 99 | 99 | 1/4 CS |
| 2B14 352 | 2B14-352 | 15.1 | 1.500 - 11.100 | 7,5 - 9,5 | 7.8 | 3.5 | 11.3 | TIDAK | 93 | 98 | 99 | 99 | 3/4 OS |
| 2B14 353 | 2B14-353 | 15.1 | 1.500 - 11.100 | 7,5 - 9,5 | 6.4 | 4.9 | 11.3 | IYA | 93 | 98 | 99 | 99 | 3/4 OS |
| 2B14 354 | 2B14-354 | 15.1 | 1.500 - 11.100 | 7,5 - 9,5 | 7.8 | 3.5 | 11.3 | TIDAK | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B14 355 | 2B14-355 | 15.1 | 1.500 - 11.100 | 7,5 - 9,5 | 6.4 | 4.9 | 11.3 | IYA | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B14 362 | 2B14-362 | 16 | 2.000 - 13.100 | 7,5 - 9,5 | 11.7 | 3.5 | 15.2 | TIDAK | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B14 363 | 2B14-363 | 16 | 2.000 - 13.100 | 7,5 - 9,5 | 11.7 | 3.5 | 15.2 | TIDAK | 93 | 98 | 99 | 99 | 3/4 OS |
| 2B14 452 | 2B14-452 | 16 | 2.000 - 13.100 | 7,5 - 9,5 | 11 | 4.2 | 15.2 | IYA | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B15 375 | 2B15-375 | 16.7 | 2.000 - 12.300 | 7,5 - 9,5 | 9.3 | 3.5 | 12.8 | TIDAK | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B15 376 | 2B15-376 | 16.7 | 2.000 - 12.300 | 7,5 - 9,5 | 7.9 | 4.9 | 12.8 | IYA | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B15 377 | 2B15-377 | 16.7 | 2.000 - 12.300 | 7,5 - 9,5 | 9.3 | 3.5 | 12.8 | TIDAK | 93 | 98 | 99 | 99 | 3/4 OS |
| 2B15 378 | 2B15-378 | 16.7 | 2.000 - 12.300 | 7,5 - 9,5 | 7.9 | 4.9 | 12.8 | IYA | 93 | 98 | 99 | 99 | 3/4 OS |
| 2B19 8423 | 2B19-8423 | 20.5 | 3.200 - 23.700 | 7.0 - 10.0 | 8.75 | 3.25 | 12 | ** | 92 | 97 | 98 | 99 | ** |
| 2B19 8433 | 2B19-8433 | 20.5 | 3.200 - 23.700 | 7.0 - 10.0 | 8.75 | 3.25 | 12 | ** | 92 | 97 | 98 | 99 | ** |
| 2B22 8529 | 2B22-8529 | 23 | 5,200 - 31,700 | 7.0 - 9.0 | 9.25 | 3.25 | 12.5 | ** | 93 | 97 | 98 | 99 | ** |
| 2B22 8539 | 2B22-8539 | 23 | 5,200 - 31,700 | 7.0 - 9.0 | 9.25 | 3.25 | 12.5 | ** | 93 | 97 | 98 | 99 | ** |
| 2B6 530 | 2B6-530 | 6.5 | 180 - 2.000 | 4.5 - 6.5 | 4.9 | 2.8 | 7.7 | TIDAK | 85 | 96 | 97 | 99 | 1/4 C |
| 2B6 531 | 2B6-531 | 6.5 | 180 - 2.000 | 4.5 - 6.5 | 4.9 | 2.8 | 7.7 | TIDAK | 85 | 96 | 97 | 99 | 1/4 OS |
| 2B6 532 | 2B6-532 | 6.5 | 180 - 2.000 | 4.5 - 6.5 | 4.3 | 3.4 | 7.7 | IYA | 85 | 96 | 97 | 99 | 1/4 OS |
| 2B6 535 | 2B6-535 | 7 | 300 - 2.200 | 5.0 - 7.0 | 6.3 | 2.8 | 9.1 | TIDAK | 92 | 97 | 98 | 99 | 1/4 OS |
| 2B6 536 | 2B6-536 | 7 | 300 - 2.200 | 5.0 - 7.0 | 5.7 | 3.4 | 9.1 | IYA | 92 | 97 | 98 | 99 | 1/4 OS |
| 2B7 540 | 2B7-540 | 8 | 230 - 2.500 | 6.0 - 8.0 | 6.5 | 2.5 | 9 | TIDAK | 91 | 97 | 98 | 99 | 1/4 C |
| 2B7 541 | 2B7-541 | 8 | 230 - 2.500 | 6.0 - 8.0 | 6.5 | 2.5 | 9 | TIDAK | 91 | 97 | 98 | 99 | 1/4 OS |
| 2B7 542 | 2B7-542 | 8 | 230 - 2.500 | 6.0 - 8.0 | 5.7 | 3.3 | 9 | IYA | 91 | 97 | 98 | 99 | 1/4 OS |
| 2B7 546 | 2B7-546 | 8 | 230 - 2.500 | 6.0 - 8.0 | 6.5 | 2.5 | 9 | TIDAK | 91 | 97 | 98 | 99 | 3/4 C |
| 2B8 550 | 2B8-550 | 8.8 | 440 - 2.700 | 7.0 - 8.0 | 7.2 | 2.9 | 10.1 | TIDAK | 93 | 97 | 98 | 99 | 1/4 C |
| 2B8 552 | 2B8-552 | 8.8 | 440 - 2.700 | 7.0 - 8.0 | 7.2 | 2.9 | 10.1 | TIDAK | 93 | 97 | 98 | 99 | 3/4 C |
| 2B8 553 | 2B8-553 | 8.8 | 440 - 2.700 | 7.0 - 8.0 | 7.2 | 2.9 | 10.1 | TIDAK | 93 | 97 | 98 | 99 | 1/4 OS |
| 2B8 554 | 2B8-554 | 8.8 | 440 - 2.700 | 7.0 - 8.0 | 6.6 | 3.5 | 10.1 | IYA | 93 | 97 | 98 | 99 | 1/4 OS |
| 2B9 200 | 2B9-200 | 10.3 | 340 - 3.700 | 8.0 - 9.0 | 7.6 | 3.2 | 10.8 | TIDAK | 92 | 97 | 98 | 99 | 1/4 OS |
| 2B9 201 | 2B9-201 | 10.3 | 340 - 3.700 | 8.0 - 9.0 | 7 | 3.8 | 10.8 | IYA | 92 | 97 | 98 | 99 | 1/4 OS |
| 2B9 204 | 2B9-204 | 10.3 | 340 - 3.700 | 8.0 - 9.0 | 7.6 | 3.2 | 10.8 | TIDAK | 92 | 97 | 98 | 99 | 1/2 OS |
| 2B9 205 | 2B9-205 | 10.3 | 340 - 3.700 | 8.0 - 9.0 | 7 | 3.8 | 10.8 | IYA | 92 | 97 | 98 | 99 | 1/2 OS |
| 2B9 208 | 2B9-208 | 10.3 | 340 - 3.700 | 8.0 - 9.0 | 7 | 3.8 | 10.8 | IYA | 92 | 97 | 98 | 99 | 3/4 OS |
| 2B9 216 | 2B9-216 | 10.3 | 340 - 3.700 | 8.0 - 9.0 | 7.6 | 3.2 | 10.8 | TIDAK | 92 | 97 | 98 | 99 | 3/4 OS |
| 2B9 250 | 2B9-250 | 10.3 | 540 - 3.800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | TIDAK | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9 251 | 2B9-251 | 10.3 | 540 - 3.800 | 8.0 - 9.0 | 8.4 | 3.8 | 12.2 | IYA | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9 253 | 2B9-253 | 10.3 | 540 - 3.800 | 8.0 - 9.0 | 8.4 | 3.8 | 12.2 | IYA | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9 255 | 2B9-255 | 10.3 | 540 - 3.800 | 8.0 - 9.0 | 8.4 | 3.8 | 12.2 | IYA | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9 256 | 2B9-256 | 10.3 | 540 - 3.800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | TIDAK | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9 263 | 2B9-263 | 10.3 | 540 - 3.800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | TIDAK | 93 | 98 | 99 | 99 | 1/2 OS |
| 2B9 275 | 2B9-275 | 10.3 | 540 - 3.800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | TIDAK | 93 | 98 | 99 | 99 | 3/4 OS |
| FD 200-22 | FD 200-22 | ||||||||||||
