| Tempat asal: | Cina |
| Nama merek: | Goodyear |
| Sertifikasi: | ISO/TS16949:2009 |
| Nomor model: | 3B14-450 |
| Kuantitas min Order: | 1 pc |
|---|---|
| Kemasan rincian: | kotak karton yang kuat atau sesuai kebutuhan pelanggan |
| Waktu pengiriman: | 2-8 hari kerja |
| Syarat-syarat pembayaran: | T / T, Western Union, paypal atau orang lain |
| Menyediakan kemampuan: | 1000 pcs / minggu |
| Bahan: | Baja dan Karet | TAHUN YANG BAIK: | 3B14-450 |
|---|---|---|---|
| Jaminan: | 12 bulan | Bobot: | 8,0 kg |
| Nama lain: | Bagian suspensi udara | Kemampuan Tekanan: | 0,2-0,8 M Pa |
| Goodyear BELLOWS NUMBER: | 556-33-8-335 | Ukuran paket: | 38 * 38 * 22 cm |
| Cahaya Tinggi: | 556-33-8-335,3B14-450 Air Spring Bellows,Firestone W013587845 |
||
556-33-8-335 Goodyear 3B14-450 Air Spring Bellows FIRESTONE W013587845 Untuk AUTOMANN ABSP3B32RA-7845

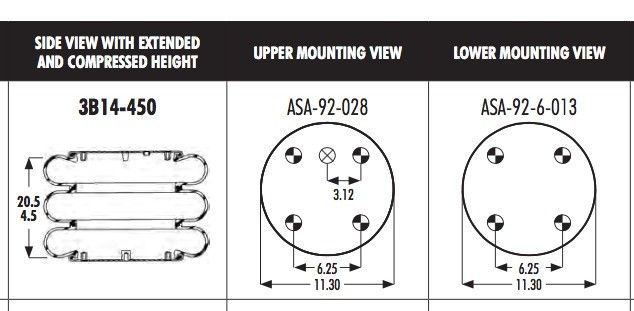

Goodyear 3B14-450 Parameter teknik
❶Nut / Buta Nut
Sekrup Pelat Penutup Atas (Mur) Gigi: 4pcsX3 / 8-16UNC
Jarak Pusat Sekrup Pelat Penutup Atas: 158.8 mm
Sekrup Pelat Penutup Bawah (Mur) Gigi: 4pcsX3 / 8-16UNC
Jarak Pusat Sekrup Pelat Penutup Bawah: 158.8 mm
❷ Lubang Gas / Saluran masuk udara / Pemasangan Udara
Lubang Gas / Saluran masuk udara: 1/4 N PTF / 1 / 4NPTF
❸ Pelat penutup
Diameter pelat penutup atas: 289 mm
Diameter Pelat Penutup Bawah: 289 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 356 mm
Rubber Bellows Natural Diameter: 282 mm
Tinggi Desain: 9-13 inci / 229mm-330mm
Tinggi Maksimum: 460 mm
❺ Blok bumper / blok penyangga
Dengan Bumper Block
❻ Girdle Hoop / Girdle Ring
Dengan Girdle Hoop: Dua Potongan Girdle Hoop
Produsen Peralatan Asli OEM:
Goodyear 3B14-450
Goodyear 556-33-8-335
FIRESTONE W013587845
AUTOMANN ABSP3B32RA-7845
| 57893245000000 | 57893245000000 | 20095074 | Y | 3B14-450 | 3B14-450 |
| 57893245000004 | 3B14-450 | 20116866 | N | 3B14-450 Bellows Air Spring | 3B14-450 Bellows Air Spring |
| 57893245000019 | 57893245000019 | 20095075 | Y | ENIDINE YI-3B14-450 | ENIDINE YI-3B14-450 |
| 57893245100000 | 893-2451 | 20881107 | N | PERANG SEMI UDARA | PERANG SEMI UDARA |
| 57893245100004 | 3B14-451 | 20095076 | N | 3B14-451 Bellows Air Spring | 3B14-451 Bellows Air Spring |
| 57893245200004 | 3B14-452 | 20035828 | N | 3B14-452 Bellows Air Spring | 3B14-452 Bellows Air Spring |
| 57893245300000 | 57893245300000 | 20099809 | Y | 3B14-453 | 3B14-453 |
| 57893245300004 | 3B14-453 | 20116867 | N | 3B14-453 Bellows Air Spring | 3B14-453 Bellows Air Spring |
| 57893245300019 | 57893245300019 | 20099880 | Y | ENIDINE YI-3B14-453 | ENIDINE YI-3B14-453 |
| 57893245400000 | 57893245400000 | 20116427 | Y | 3B14-454 | 3B14-454 |
| 57893245600004 | 3B14-456 | 20254221 | N | 3B14-456 Bellows Air Spring | 3B14-456 Bellows Air Spring |
| 57893245700004 | 3B14-457 | 20254222 | N | 3B14-457 Bellows Air Spring | 3B14-457 Bellows Air Spring |
| 57893245800004 | 3B14-458 | 20254223 | N | 3B14-458 | 3B14-458 |
| 57893245900004 | 3B14-459 | 20254224 | N | 3B14-459 Bellows Air Spring | 3B14-459 Bellows Air Spring |
| 57893246000004 | 3B14-460 | 20254226 | N | 3B14-460 | 3B14-460 |
| 57893246100004 | 3B14-461 | 20254227 | N | 3B14-461 | 3B14-461 |
| 57893246200004 | 3B14-462 | 20254228 | N | 3B14-462 Bellows Air Spring | 3B14-462 Bellows Air Spring |
| 57893246300004 | 3B14-463 | 20254229 | N | 3B14-463 Bellows Air Spring | 3B14-463 Bellows Air Spring |
| 57893246400004 | 3B14-464 | 20254230 | N | 3B14-464 Bellows Air Spring | 3B14-464 Bellows Air Spring |
| 57893246500000 | 57893246500000 | 20395896 | Y | Halmek 556-3-3-8335M | Halmek 556-3-3-8335M |
| 57893246500004 | 57893246500004 | 20395897 | Y | 3B14-465 | 3B14-465 |
| 57893246600000 | 57893246600000 | 20583265 | Y | 3B14-466 | 3B14-466 |
| 57893246600004 | 3B14-466 | 20583266 | Y | 3B14-466 | 3B14-466 |
| 57893246700081 | 57893246700081 | 20668930 | Y | 3B12-467 JOHN DEERE AN404831 | 3B12-467 JOHN DEERE AN404831 |
| 57893246800095 | 57893246800095 | 20806487 | Y | P 3B12-312 | P 3B12-312 |
| 57893246900091 | 57893246900091 | 20811407 | Y | P 3B12-323 | P 3B12-323 |
| 57893246900095 | 57893246900095 | 20806488 | Y | P 3B12-323 | P 3B12-323 |
| 57893247000095 | 57893247000095 | 20806500 | Y | P 3B12-334 | P 3B12-334 |
| 57893247100095 | 57893247100095 | 20806501 | Y | P 3B14-452 | P 3B14-452 |
| 57893247200090 | 57893247200090 | 20810175 | Y | C 3B14-364 | C 3B14-364 |
| 57893247200094 | 57893247200094 | 20810176 | Y | C 3B14-364 | C 3B14-364 |
| 57893247300090 | 57893247300090 | 20810177 | Y | C 3B14-466 | C 3B14-466 |
| 57893247400094 | 57893247400094 | 20810224 | Y | C 3B15-375 | C 3B15-375 |
| 57893247500091 | 57893247500091 | 20810363 | Y | P 3B14-364 | P 3B14-364 |
| 57893247500095 | 57893247500095 | 20810364 | Y | P 3B14-364 | P 3B14-364 |
| 57893247600091 | 57893247600091 | 20810367 | Y | P 3B14-466 | P 3B14-466 |
