| Tempat asal: | Guangzhou, Cina |
| Nama merek: | GUOMAT |
| Sertifikasi: | ISO/TS16949:2009 |
| Nomor model: | 2B6946 |
| Kuantitas min Order: | 5pcs |
|---|---|
| Harga: | USD59.9-69.9/PC |
| Kemasan rincian: | Kotak Karton yang kuat atau sebagai Kebutuhan Pelanggan |
| Waktu pengiriman: | 3-7 Hari Kerja |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union atau lainnya |
| Menyediakan kemampuan: | 1000PCS/Minggu |
| Tipe Musim Semi: | Pegas Udara Berbelit-belit | Bahan Pegas: | Karet |
|---|---|---|---|
| Kualitas: | 100% Teruji | Fungsi: | Kurangi Kejutan |
| batu api: | W01-358-6946 | Layanan purna jual: | 12 bulan |
| Bagian: | Udara musim semi | Jenis: | Berisi gas |
| Menyoroti: | Goodyear Rubber Air Spring,2B9-254 Air Spring,FD200-25 Air Spring |
||

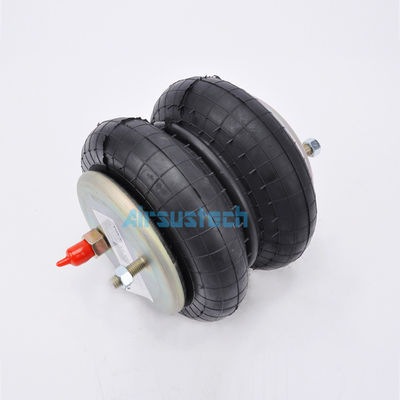

Contitech FD200-25 463 Air Spring 2B9-254 Goodyear Karet Double Bellow Suspension
OEM NO.
| Firestone | W01-358-6946 |
| Firestone |
WO13586946 |
| Firestone |
WO1-358-6946 |
| Firestone |
W013586946 |
| Batu Api. | W01-358-6946 |
| Batu Api. |
WO13586946 |
| Batu Api. |
WO1-358-6946 |
| Batu Api. |
W013586946 |
| Contitech | FD 200-25 463 |
| Contitech | FD 200 25 463 |
| Contitech | FD200-25 463 |
| Contitech | FD 200 25 463 |
| Contitech | FD20025463 |
| Contitech | 161338 |
| Segitiga | 6332 |
| Segitiga | 4463 |
| Goodyear | 2B9-254 |
| Goodyear | 2B9 254 |
| Goodyear | 578-92-3-206 |
| Goodyear | 578 92 3 206 |
| Goodyear | 578923206 |
| Arvin Meritor | 200180 |
| Ridewell | 1003586946C |
| Leland | Sc2126 |
| Tekanan p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Kekuatan (Beban) [KN] | 6.0 | 8.1 | 10.2 | 12.3 | 14.4 | 16.5 | 8.6 |
| Kecepatan pegas [N/cm] | 730 | 930 | 1200 | 1390 | 1660 | 1840 | |
| Frekuensi alami [Hz] | 1.8 | 1.8 | 1.7 | 1.7 | 1.7 | 1.7 |
| Tekanan p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Tinggi H[mm] | 290 | 4.1 | 5.6 | 7.3 | 9.0 | 10.5 | 12.4 | 9.4 |
| 260 | 5.6 | 7.3 | 9.4 | 11.3 | 13.4 | 15.4 | 8.9 | |
| 230 | 6.6 | 8.8 | 11.1 | 13.4 | 15.8 | 18.1 | 8.4 | |
| 200 | 7.5 | 9.9 | 12.5 | 15.0 | 17.6 | 20.2 | 7.7 | |
| 170 | 8.3 | 11.0 | 13.8 | 16.6 | 19.4 | 22.2 | 7.0 | |
| 140 | 8.9 | 11.8 | 14.8 | 17.7 | 20.7 | 23.6 | 6.1 | |
| 110 | 9.3 | 12.3 | 15.6 | 18.7 | 21.9 | 24.6 | 5.1 | |
