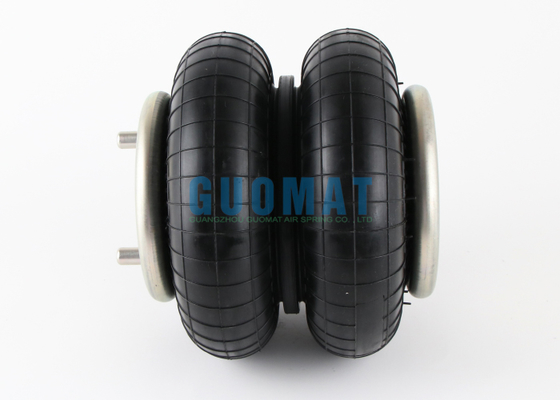

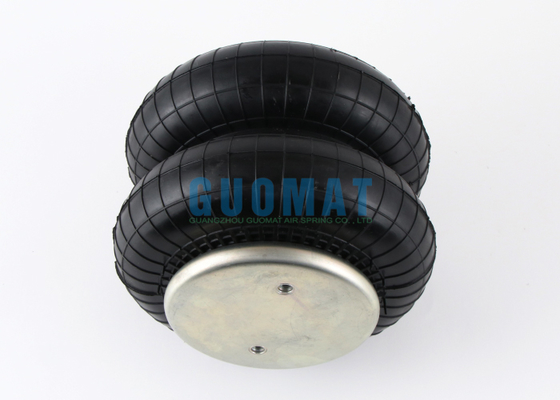

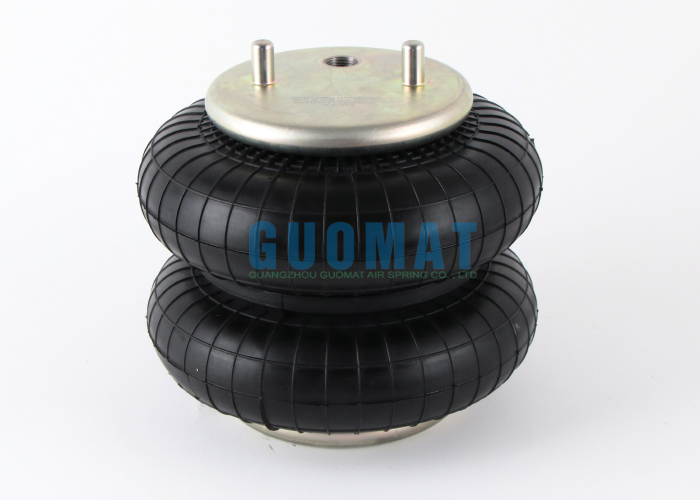

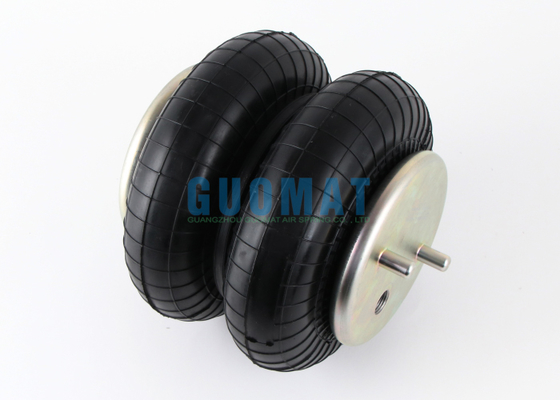

FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags

Detail produk:

Tempat asal:	Guangzhou, Cina
Nama merek:	GUOMAT
Sertifikasi:	ISO/Ts16949:2009
Nomor model:	2B6905

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	6 pcs
Harga:	$59.9-69.9/pc
Kemasan rincian:	Pengemasan atau kemasan karton sesuai dengan kebutuhan pelanggan
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	L/C, T/T, Western Union
Menyediakan kemampuan:	10.000 per minggu

Kontak

Detil Deskripsi produk

Bahan Pegas:	Karet alam	Kualitas:	100% Teruji
Fungsi:	Kurangi Kejutan	Jaminan:	12 bulan
batu api:	W01-358-6905	Goodyear:	2B9-206
Stroke:	81mm-274mm	Blok penyangga:	Dengan
Menyoroti:	Contitech replacement air spring , Firestone convoluted air bags , industrial air spring with warranty

FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags

Attribute	Value
Spring Material	Natural Rubber
Quality	100 % Tested
Function	Reduce Shock
Warranty	12 Months
Firestone	W01-358-6905
Goodyear	2B9-206
Stroke	81mm-274mm
Buffer Block	With

Product Description

Brand: GUOMAT

Model No.: 2B6905

Bellows No.: 2B200

Manufacturer Warranty: 1 Year

Material: Rubber and Steel

Condition: Brand New

Packing: Carton/Pallet

Cross Reference Number

Firestone	W01-358-6905
Contitech	FD 200-19 315
Goodyear	ZB9-206/209
Goodyear	578923200/2
Triangle	6325/4315
EZ Ride	8030120
Dayton	3546905
Leland	Sc2071
Navistar	1685175C1
Hendrickson	458431
Hendrickson	S3518/S5270
Ridewell	1003586905C
SAF Holland	57006905
Tuthill	6389
Watson&Chalin	As0020
Silent Drive	As6882

Technical Data

Nut / Blind Nut
Center Distance Between Threaded Holes and Air Holes: 38.5mm
Screw Center Distance of Top Cover Plate: 89 mm
Screw Center Distance of Bottom Cover Plate: 89 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet: 1/4 N P.T.F. / 1/4NPTF
Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 251.5 mm
The Working Stroke: MAX 274 mm to MIN 81 mm
Maximum Height: 274 mm
Minimum Height: 81 mm
Compression Height: 193 mm
Bumper block / Buffer block
With Bumper Block
Girdle Hoop / Girdle Ring
Without Girdle Hoop
