W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device

W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device

  • W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
  • W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
  • W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
  • W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
Detail produk:
Tempat asal: Guangzhou, Cina
Nama merek: GUOMAT
Sertifikasi: ISO/TS16949:2009
Nomor model: 1B7451
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 5 pcs
Harga: USD49.9-59.9/PC
Kemasan rincian: Kotak karton yang kuat atau sesuai kebutuhan pelanggan
Waktu pengiriman: 3-7 hari kerja
Syarat-syarat pembayaran: L/C, T/T, Western Union atau lainnya
Menyediakan kemampuan: 1000pcs/minggu
Kontak
Detil Deskripsi produk
Model: Musim semi udara karet Kualitas: 100 % diuji
Jaminan: 12 bulan Posisi: Mesin industri
Jenis: Diisi gas Firestone: W01-358-7451
Stroke: 50mm-140mm Lubang udara: 1/4nptf
Menyoroti:

Firestone Industrial Air Spring 1/4NPTF

,

Air Lift Suspension Web Tensioner

,

Industrial Air Spring with warranty

W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
Product Attributes
Attribute Value
Model Rubber Air Spring
Quality 100% Tested
Warranty 12 Months
Position Industrial Machine
Type Gas-Filled
Firestone W01-358-7451
Stroke 50mm-140mm
Air Hole 1/4NPTF
Additional Information
Brand GUOMAT
Model No. 1B7451
Payment T/T, Letter of Credit, PayPal
Packing Moisture-proof carton (export standard)
OEM Numbers
  • Firestone Style Number: 110
  • Firestone Part Number: W01 358 7451
  • Firestone Part Number: W01-358-7451
  • Firestone Part Number: W013587451
  • Firestone Part Number: 7451
Specifications and Technical Parameters
Nut/Blind Nut: Threaded hole: 2X3/8-16UNC
The threaded hole distance of the cover plate: 44.5mm
Air Hole/Air Inlet/Air Fittings: Air hole/air inlet: 1/4 NPTF
The center distance between the air hole and the threaded hole: 22.25mm
Cover Plate: Top plate diameter: 115mm
Diameter of the bottom cover: 115mm
Rubber Bellows: The rubber bellows maximum outer diameter: 205mm
Maximum height: 140mm
Minimum height: 50mm
Bumper Block: No bumper block
Belt Loop: Without
Force Table
Assembly Height(in.) Volume@100PSIG(in3) Pounds Force @20PSIG @40PSIG @60PSIG @80PSIG @100PSIG
4.0 117 390 810 1240 1700 2160
3.0 91 490 1010 1540 2090 2650

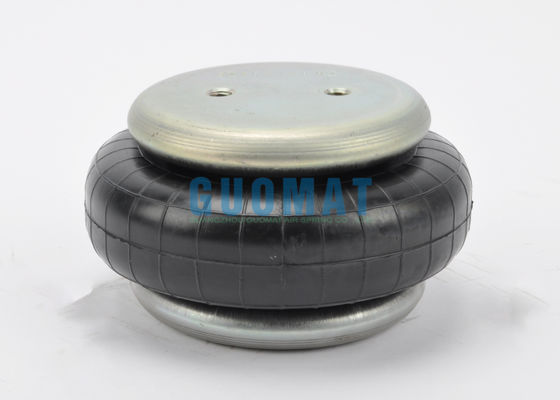

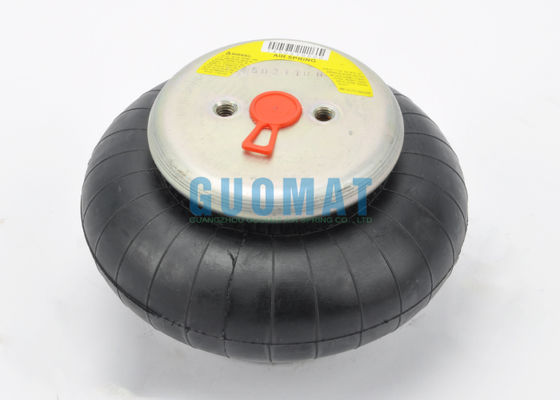

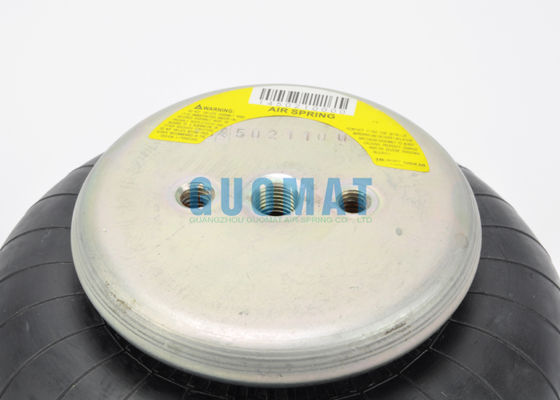

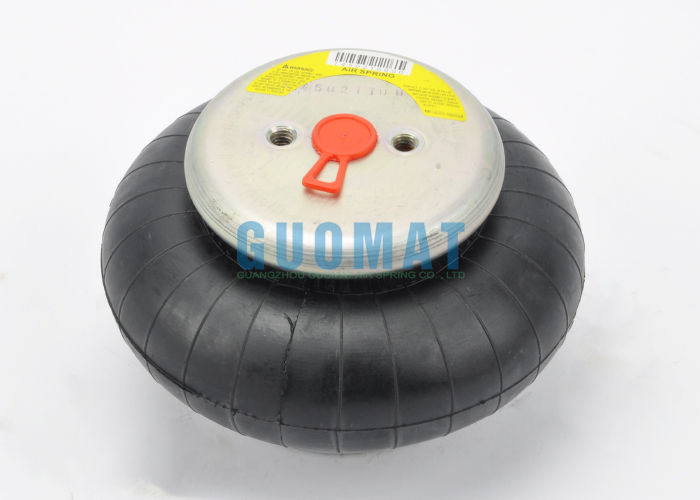

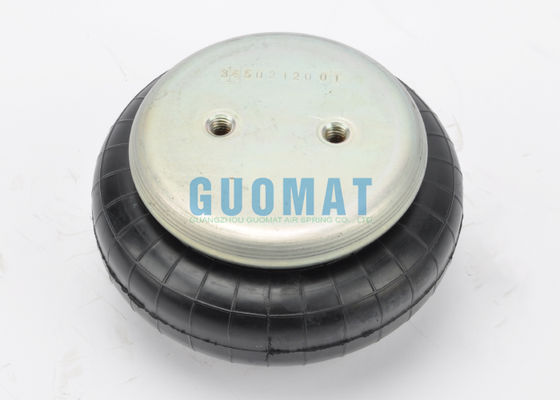

Product Image
W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device 0
