Rumah ProdukCab Air Shock Absorber

1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock

1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock

  • 1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock
  • 1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock
1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock
Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: GUOMAT
Sertifikasi: ISO/TS16949:2009
Nomor model: G3011
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 6 pcs
Harga: $39.9-49.9/pc
Kemasan rincian: kotak karton yang kuat atau sesuai kebutuhan pelanggan
Waktu pengiriman: 2-8 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, L/C, negosiasi lainnya
Menyediakan kemampuan: 10000pcs/minggu
Kontak
Detil Deskripsi produk
Nama model: Suspensi udara taksi Bahan: Bagian plastik
Jaminan: 12 bulan Aplikasi: Dudukan Pegas Udara
Warna: Hitam Nomor bagian: Goodyear 1S3-011
Max.H: 8'' Min.H: 3,6''
Menyoroti:

Goodyear Super Cushion Air Spring

,

Cab Air Suspension Shock Absorber

,

Air shock kabin piston

1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock
Spesifikasi produk
OEM No.Goodyear 1S3-011
Model trukTrailer truk universal
BahanBagian plastik
Nama bagianPenyerap goncangan
Suhu kerja-40 ° C bis +70 ° C.
Pengujian kegagalan≥3 juta

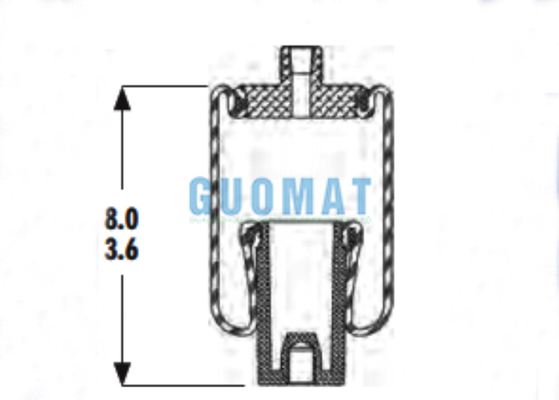

1S3-011 Goodyear Cab Air Spring Technical Data
Lubang pelat atas/stud qty 1
DIA PLATE TOP 2.2
Stud lubang pelat bawah qyt 1
DIA PLATE BOTTER 1.54
Pelat bawah C ke C Diameter
Penyelarasan pelat bawah Paralel
Bumper TIDAK
Tinggi min 3.6
Tinggi maksimal 8
Nomor pabrikan OE
  • Goodyear Air Spring Assembly Nomor: 1S3-011
  • Goodyear Air Spring Assembly Nomor: 1S 3-011
  • Goodyear Air Spring Assembly Nomor: 1S3 011
  • Goodyear Air Spring Assembly Nomor: 1S3011
  • Goodyear Piston Number: ASB-06-7-014
  • Goodyear Piston Number: ASB 06 7 014
  • Goodyear Piston Number: ASB067014
  • Firestone Air Bellows Nomor: 4001
  • Firestone Air Bellows Number: W02-358-4001
  • Firestone Air Bellows Number: W02 358 4001
  • Firestone Air Bellows Number: W023584001
  • Les Autobus: G5006637
  • Link Cab & Seat Springs: 1101-0001
  • Novabus: N12687
  • Prevost: 95-0208
Tabel gaya
Tinggi perakitan (mm) Volume 100 psig (Cu/ cm) Area EFF@7 bar (cm sq) kn force @3 bar @4 bar @5 bar @6 bar @7 bar
180438250.741.011.261.531.78
170411260.741.011.281.581.84
160383260.7211.271.581.85
150355260.70.981.251.551.82
140325250.680.951.211.511.78
130297240.660.921.171.451.71
120272240.650.91.131.401.65
110246230.640.881.111.361.59
100225220.630.861.091.331.55

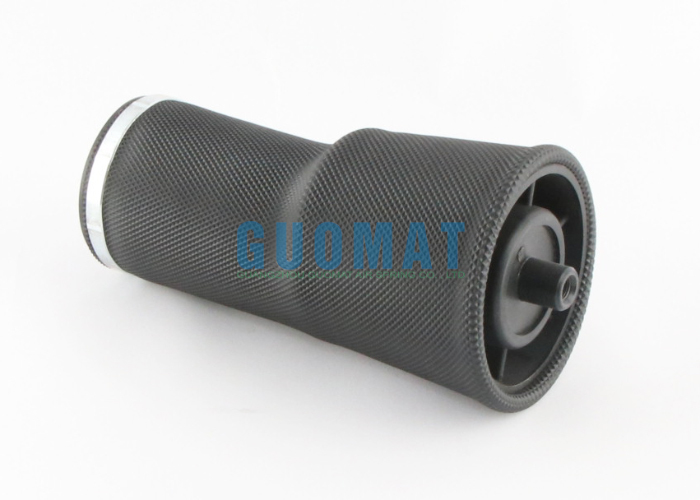

Gambar fisik produk
1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock 0 1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock 1
