1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber

1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber

  • 1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
  • 1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
  • 1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
  • 1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
Detail produk:
Tempat asal: Guangzhou, Cina
Nama merek: GUOMAT
Sertifikasi: ISO/TS16949:2009
Nomor model: 1B5500
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 5 pcs
Harga: USD49.9-59.9/PC
Kemasan rincian: Kotak karton yang kuat atau sesuai kebutuhan pelanggan
Waktu pengiriman: 3-7 hari kerja
Syarat-syarat pembayaran: L/C, T/T, Western Union atau lainnya
Menyediakan kemampuan: 1000 buah/minggu
Kontak
Detil Deskripsi produk
Nama item: Musim semi udara industri Bahan: Karet dan baja
OEM: Ya Jaminan: 12 bulan
Goodyear: 1b5-500 Berat musim semi: 1kg
Pemasangan udara: 1/4 "NPT Bumper: TIDAK
Menyoroti:

Goodyear single convoluted air spring

,

Rubber air shock absorber

,

Industrial air spring with warranty

1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber
Product Description
Item Name: Industrial Air Spring
Model No.: 1B5510
Brand: GUOMAT
Warranty: 12 Months
Type: Convoluted Air Spring
Service Offered: OEM
Suspension System: Air Spring Suspension
Applications: For Industrial Machine
Sample: Available
Type Of Goods: Air Spring/Air Bags/Air Ballons
Material: Imported Natrul Rubber
Operation: Gas-filled
Package: Standard Packing Or Customized
OEM Number/Cross Number
  • Goodyear OEM Number: 1B5-500
  • Goodyear OEM Number: 1B 5-500
  • Goodyear OEM Number: 1B5 500
  • Goodyear OEM Number: 1B5500
  • Firestone OEM Number: W01-358-7001
  • Firestone OEM Number: W01 358 7001
  • Firestone OEM Number: W013587001
  • Firestone OEM Number: WO1-358-7001
  • Firestone OEM Number: WO1 358 7001
  • Firestone OEM Number: WO13587001
  • Contitech OEM Number: FS50-5
  • Contitech OEM Number: FS 50-5
  • Contitech OEM Number: FS50-5 CI
  • Contitech OEM Number: FS 50-5 CI
  • Contitech OEM Number: FS50-5 CI 1/4 NPT
  • Contitech OEM Number: FS 50-5 CI 1/4 NPT
  • Contitech OEM Number: FS50-5 CI 1/4 NPT CA
  • Contitech OEM Number: FS 50-5 CI 1/4 NPT CA
  • Enidine OEM Number: YI-1B5-500
  • Enidine OEM Number: YI 1B5-500
Technical Data
Air Fitting:
1/4" NPT, Centered
End Plate Diameter:
3.4"
Mounting Holes:
Two 3/8"-16 UNC
Mounting Hole Spacing:
1.75" Center-to-Center
Overall Height:
3.8" Max.
Bumper:
Not Included / No
Single Convoluted Air Bellow-1B5
Assembly Number Maximum Stroke(in.) Approximate System Natural Frequency Hz Design Height Range(in.)
1B5-500 | 1B5-502 2.00 3.25 2.5-3.0
1B5-510 | 1B5-512 3.00 2.75 2.5-4.0
1B5-520 | 1B5-521 3.00 2.67 3.5-5.0
Product Images

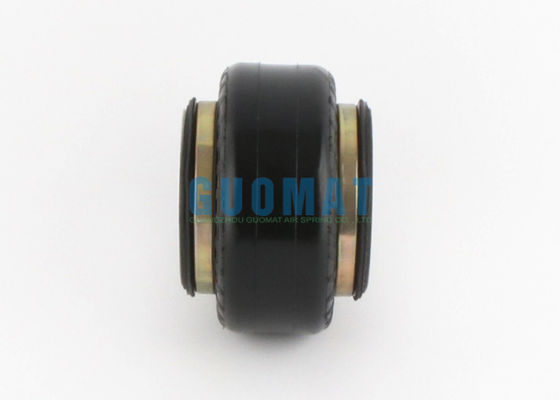

1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber 0 1B5-500 Goodyear Single Convoluted Air Spring 579-912-500 Rubber Air Shock Absorber 1
