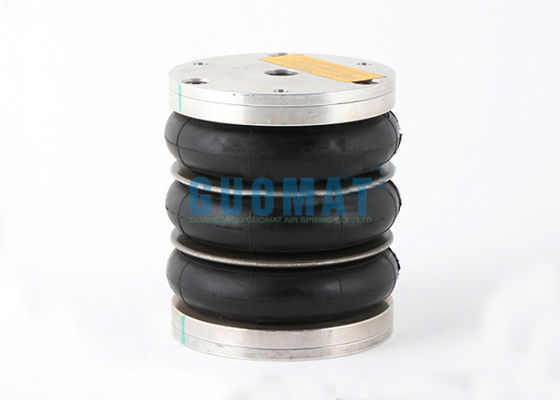

6" x 3 Triple Air Spring FT 76-20 DI Contitech Industrial Air Spring PM/31063 Norgren

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949, ISO9001
Nomor model:	3B6X3P

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	USD99.9-189.9/PC
Kemasan rincian:	Kotak karton yang kuat atau sesuai kebutuhan pelanggan
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	L/C, D/A, D/P, Western Union
Menyediakan kemampuan:	1000pcs/minggu

Kontak

Detil Deskripsi produk

Kemampuan tekanan:	0,2-0,8 M PA	Tipe bellow:	Tiga Berbelit-belit
Simpai:	Ya	Mencicipi:	Tersedia

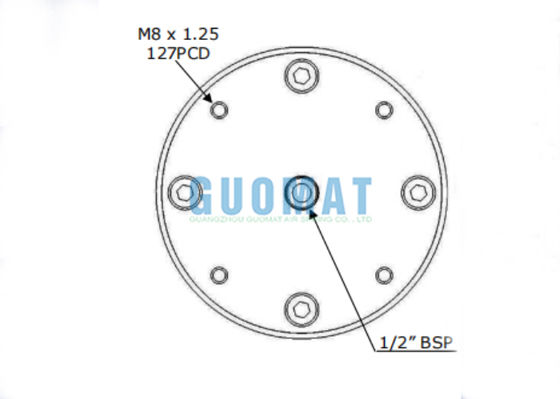

Jenis Fitment:	Penggantian langsung	Pemasangan udara:	G1/2
Contitech:	FT 76-20 DI	Berat:	2kg
Menyoroti:	6 inch industrial air spring , triple air spring with warranty , Contitech industrial air spring

6" x 3 Triple Air Spring FT 76-20 DI Contitech Industrial Air Spring PM/31063 Norgren

Product Description

Industrial air springs, also commonly known as air isolators or pneumatic actuators, are flexible, sealed containers that use the internal pressure of compressed air as an elastic medium to achieve functions such as support, cushioning, vibration isolation, lifting and height adjustment.

Product Details

Product Name:	Air Spring
Description:	Industrial Air Spring
Brand	GUOMAT
Model No.	3B6X3P
MOQ:	1 PCS
Warranty:	12 Months
Material:	Rubber
Package:	Carton
Payment:	L/C T/T West
Port of shipment	NINGBO, SHANGHAI, TIANJING, GUANGZHOU, SHENZHEN
Shippment:	By sea, By air, by DHL Fedex

Cross Reference Number

Continental ContiTech: FD 76-20 1/2 M8
Continental ContiTech: FD 76-20 Dl G1/2
Continental ContiTech: FD 76-20 Dl G1/2 M8
Continental ContiTech: FD 76-20 DI G1/2 CR
Continental ContiTech: FD 76-20 DI CR G1/2
Continental ContiTech: FD 76-20 DICR/FD76-20DICR/FD7620DICR
Continental ContiTech Bellow: FD 76-20/FD76-20/FD7620
Dunlop FR: 6"x2 SP2923 (ALUMINIUM)
Dunlop : A3 1330 03 01/A313300301
Norgren: PM/31063/PM 31063/PM31063
Nominal 0 (inch)xconvolutions:6"x3/6"x3/6x3

Dimensions

Maximum Diameter

168mm

Space Required

180mm

Minimum Height

109mm

Maximum Height

262mm

Total Stroke

153mm

Static Height

187mm

Effective Area at Static Height

350cm²

Bellows Weight

2.47kg

Pressure Specifications

Pressure P	bar	3	4	5	6	7	8	Vol.V(I)
Height (mm)	260	1.75	2.46	3.19	3.95	4.74	5.56	3.2
	220	2.69	3.65	4.63	5.64	6.67	7.74	2.9
	180	3.51	4.71	5.93	7.17	8.43	9.71	2.4
	140	4.27	5.69	7.12	8.6	10.1	11.7	1.8
	100	5.55	7.32	9.1	10.9	12.8	14.7	1.1
