| Tempat asal: | Cina |
| Nama merek: | GUOMAT |
| Sertifikasi: | ISO/TS16949:2009 |
| Nomor model: | FD330-22 |
| Kuantitas min Order: | 1pc |
|---|---|
| Kemasan rincian: | Kotak karton yang kuat atau sesuai kebutuhan pelanggan |
| Waktu pengiriman: | 2-8 hari kerja |
| Syarat-syarat pembayaran: | T / T, Western Union, Paypal atau Lainnya |
| Menyediakan kemampuan: | 1000pcs/minggu |
| Bahan: | Baja dan Karet | TAHUN YANG BAIK: | 2B12-311 |
|---|---|---|---|
| Jaminan: | 12 bulan | Bobot: | 5.0kg |
| Nama lain: | Bagian suspensi udara | Kemampuan Tekanan: | 0,2-0,8 M Pa |
| batu api: | W01-358-7180 | ||
| Cahaya Tinggi: | air helper springs,air suspension parts |
||

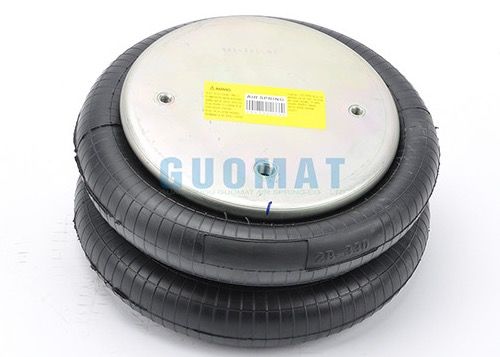

W01-358-7180 Pegas Udara Industri Ganda Berbelit-belit FD 330-22 2B12-425/311 578923309
Parameter Teknis W01-358-7180
Diameter Pelat Penutup Atas 231mm
Diameter Pelat Penutup Bawah 231 mm
Jarak Pusat Sekrup 157 mm
Jarak Lubang Gas Antar Nut 73 mm
Lubang Gas 1/4NPTF
Sekrup (Nut) Gigi 2pcsX3/8-16UNC
Karet Bellow MAX diameter 325 mm
Stroke 81-305 mm
Produsen Peralatan Asli OEM:
| DI BAWAH NO. | LENGKAP NO. | LENGKAP NO. |
| AIRKRAFT 114301 | AIRKRAFT 113333 | AIRKRAFT 113491 |
| FIRESTONE FLEX 22 | CONTITECH FD 330-22 313 | FIRESTONE W01-358-7184 |
| FIRESTONE W01 358 0226 | FIRESTONE W01 358 7400 | SELAMAT ULANG TAHUN 2B12-429 |
| 95.0037 | SELAMAT TAHUN 2B12-309 | GOODYEAR FLEX 578-92-3-309 |
| 95.0082 | GOODYEAR FLEX 578-92-3-309 | AIRKRAFT 113492 |
| SELAMAT ULANG TAHUN 556 2 3 8210 | TAURUS KF 222-7400 | FIRESTONE W01-358-7185 |
| PHOENIX 2B 22R | AIRKRAFT 113490 |
SELAMAT ULANG TAHUN 2B12- 318 Goodyear Bagian #2B12-311 Referensi Silang Goodyear-Firestone‚ 2B12-425 Referensi Silang Goodyear-Firestone‚ 2B12-437 Referensi Silang Goodyear-Firestone |
| PIRELLI T22 88544 | CONTITECH FD 330-22 363 | GOODYEAR FLEX 578-92-3-309 |
| FIRESTONE W01-358-7180 | ||
| SELAMAT ULANG TAHUN 2B12 425 | ||
| GOODYEAR FLEX 578-92-3-309 |
Batu Api: W01-358-7180/22
Contitech: FD 330-22 363
Tahun Baik: 2B12-425/311
Hendrickson : 1VA1816
: 578923309
Segitiga : 6316/4363
Kwiklok/Todco(Jifflok)
Leland : Sc2075
Navistar : 1685179C1
EI Naik: 8030190
SAF Belanda : 57007180
Watson&Chalinl : AS01541G/01881F
Getaran: VSP2B22R7180
Ridewell : 1003587180C
Tak tertandingi: 0550 00001
| Referensi silang | Pabrikan/Nomor Referensi OE. | ||
| Gaya Batu Api 22 | 22 | Produsen Asli-bagian no.Model | Asli-bagian no. |
| Batu Api No. W01-358-7424 | W01-358-7424 | Dayton 354-7424 | 354-7424 , |
| FleetPride AS7424 | AS7424 | Hendrickson S-13043 | S-13043 |
| Selamat Tahun 2B12-300 | 2B12-300 | Penjaga beban SC2024 | SC2024 |
| Goodyear Flex No.578923309 | 578923309 | Navistar/Fleetrite 554785C1 | 554785C1 |
| Taurus 6316 | 6316 | Truk R&S 1090215 | 1090215 |
| Segitiga AS-4327 | AS-4327 | SAF Belanda 90557014 | 90557014 , |
| Vibracoustic V SP 2 B 22 R-7424 | V SP 2 B22 R-7424 | Sauer P10-755 | P10-755 |
| TRP AS74240 | AS74240 | Taurus AS214-7424 | AS214-7424 |
| Automann SP2B22R-7424 | SP2B22R-7424 | Watson & Chalin AS-0009 | AS-0009 |
| Rem & Roda M3509 | M3509 | ||
| Pemberian 6421 | 6421 | ||
| Ridewell 1003587424C | 1003587424C | ||
| VOL-VO 3130504 | 3130504 |
Merek pegas udara: ContiTech
Pesaing/ID Merek: FD33022363
Nomor Model Firestone Air Spring: 22
Merek pegas udara: Goodyear
Pesaing/ID Merek: 2B12311
Nomor Model Firestone Air Spring: 22
Merek pegas udara: Goodyear
Nomor Referensi: 578923309
Pesaing/Nomor merek: 2B12425
Nomor Model Firestone Air Spring: 22
Merek Suspensi Udara: Kwic Lock
Gaya pegas udara Firestone: 22
Suspensi Udara Merk : Kwik Lok / Todco (Jifflox)
Gaya Airspring Firestone: 22
Merek Suspensi Udara: Leland
Pesaing/Nomor merek: SC2075
Gaya pegas udara Firestone: 22
Merek Suspensi Udara: Navistar
Pesaing/ID Merek: 1685179C1
Gaya pegas udara Firestone: 22
Merek Suspensi Udara: SAF Belanda
Pesaing/ID Merek: 57007180
Gaya pegas udara Firestone: 22
Merek Suspensi Udara: Peerless
Pesaing/ID Merek: 5500001
Jenis pegas udara Firestone: 22
Merek Suspensi Udara: Ridewell
Pesaing/ID Merek: 1003587180C
Gaya pegas udara Firestone: 22
Merek Suspensi Udara: Talbert
Gaya pegas udara Firestone: 22
Merek Suspensi Udara: Watson & Chalin
Pesaing/Nomor merek: AS01541G
Gaya pegas udara Firestone: 22
Merek Air Spring: Segitiga
Nomor Referensi: 6316
Pesaing/ID Merek: 4363
Gaya pegas udara Firestone: 22
Merek Air Spring: Getaran
Pesaing/Nomor merek: VSP2B22R7180
Nomor Model Firestone Air Spring: 22
Merek Suspensi Udara: EZ Crew
/Nomor penjual: 8030190
Gaya pegas udara Firestone: 22
Merek Suspensi Udara: Hendrick
Nomor Model Firestone Air Spring: 22
Merek Suspensi Udara: Hendrickson
Pesaing/Nomor merek: NA1816
Gaya pegas udara Firestone: 22
Merek Suspensi Udara:
Henderson Truck Firestone Air Spring Style: 22
Trim Batu Api: w013587180
Jenis Mata Air Konvolusi Ganda yang biasa
| Aktuator Udara Konvolusi Ganda | ||||
| Semua Pengukuran Dalam Mm | ||||
| GUOMAT NO. | CONTITECH NO. | min.Tinggi desain | Ruang Instalasi Diperlukan | Maks.Stroke |
| 2B33022 | FD 330-22 | 75 | 340 | 230 |
| 2B33030 | FD 330-30 | 77 | 355 | 283 |
| 2B53022 | FD 530-22 | 77 | 400 | 233 |
| 2B53030 | FD 530-30 | 77 | 415 | 273 |
| 2B53035 | FD 530-35 | 77 | 420 | 313 |
| 2B96022 | FD 960-22 | 95 | 490 | 225 |
| 2B133025 | FD 1330-25 | 92 | 570 | 243 |
Gaya 22 Dua Lapis
Kacang buta, 1/4 BSP:W01-M58-6381;W01 M58 6381;W01M586381
Kacang buta, 1/4 BSP, bumper: W01-M58-6382;W01 M58 6382;W01M586382
Kacang buta, 3/4 BSP:W01-M58-6200;W01 M58 6200;W01M586200
Kacang buta, 3/4 BSP, bumper: W01-M58-6201;W01 M58 6201;W01M586201
Cincin manik baja countersunk, baut 40 mm, mur, ring: W01-M58-7524;W01 M58 7524;W01M587524
Karet bellow saja:W01-358-0226;W01 358 0226;W013580226
Berat perakitan (versi pelat manik, tanpa bumper): 5,8 kg.
Paksa runtuh ke ketinggian minimum (@ 0 BAR):88,9 N.
Gaya 210 Konstruksi Kekuatan Tinggi
Kacang buta, 1/4 BSP:W01-M58-6212;W01 M58 6212;W01M586212
Kacang buta, 1/4 BSP, bumper: W01-M58-6213;W01 M58 6213;W01M586213
Kacang buta, 3/4 BSP:W01-M58-6210;W01 M58 6210;W01M586210
Cincin manik baja countersunk, baut, mur, ring: W01-M58-6976; W01 M58 6976; W01M586976
Karet bellow saja:W01-358-7928;W01 358 7928;W013587928
Gunakan di banyak aplikasi termasuk:
Jenis lain dari FD 330-22 yang dimiliki GUOMAT:
| GUOMAT NO. | Referensi | Nomor pesanan. | Kekuatan (lbs) | OD maks (dalam) | Tinggi desain (dalam) | Tinggi | Frekuensi naratif.[cpm] | ||
| 80 psi | 100 psi | min | MAKSIMAL | ||||||
| FD 330 22 313 | FD 330-22 313 | 161016 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 318 | FD 330-22 318 | 161270 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 327 | FD 330-22 327 | 161029 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 331 | FD 330-22 331 | 161009 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 334 | FD 330-22 334 | 161271 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 337 | FD 330-22 337 | 161272 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 343 | FD 330-22 343 | 161273 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 346 | FD 330-22 346 | 161274 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 363 | FD 330-22 363 | 161275 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 364 | FD 330-22 364 | 161276 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 365 | FD 330-22 365 | 161277 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 366 | FD 330-22 366 | 161278 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 367 | FD 330-22 367 | 161279 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 368 | FD 330-22 368 | 161280 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 465 | FD 330-22 465 | 161281 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 471 | FD 330-22 471 | 161282 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 472 | FD 330-22 472 | 161283 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 500 | FD 330-22 500 | 161284 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 540 | FD 330-22 540 | 161285 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
