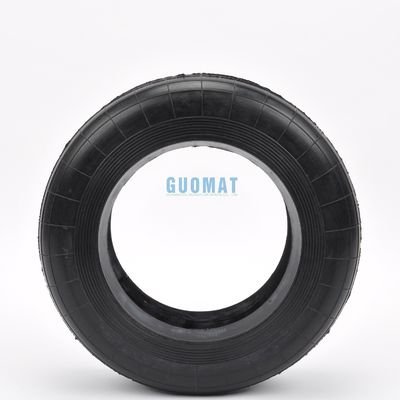

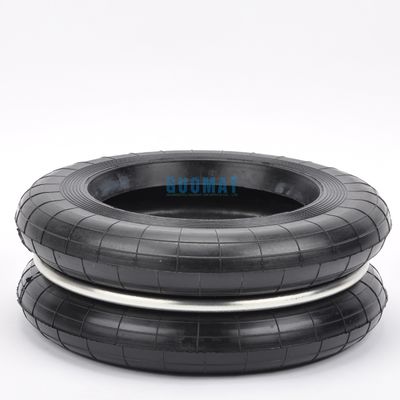

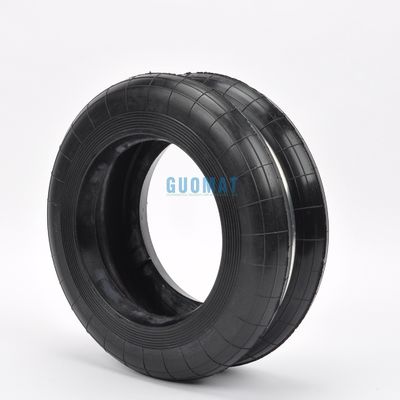

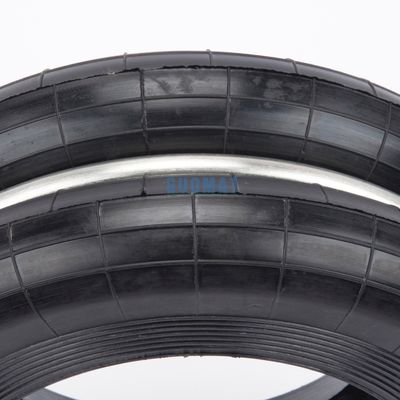

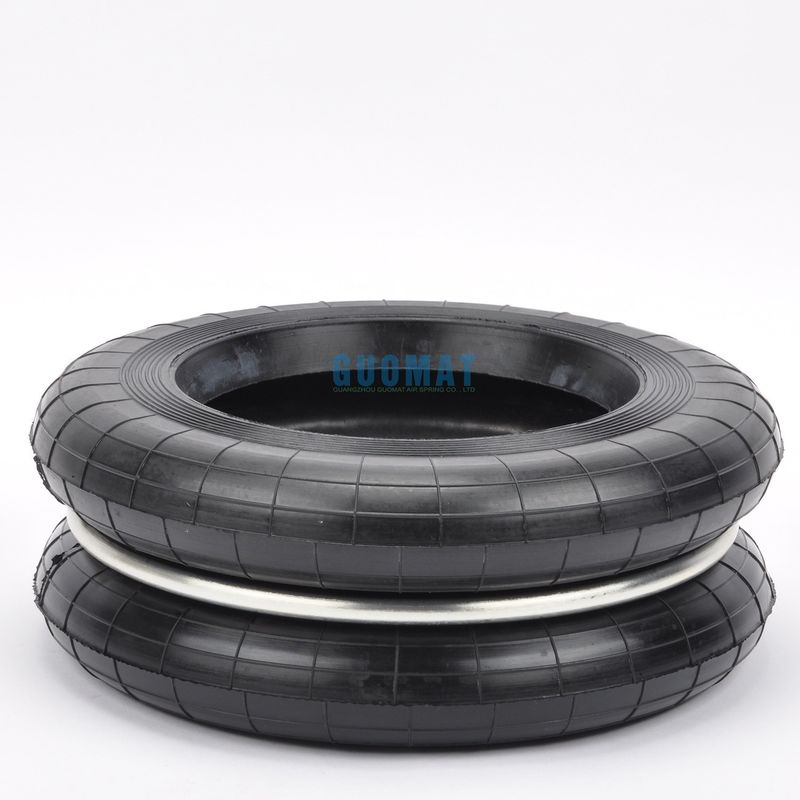

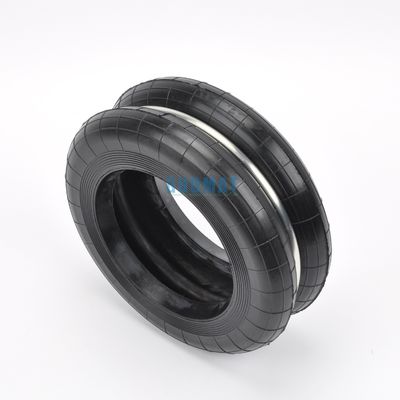

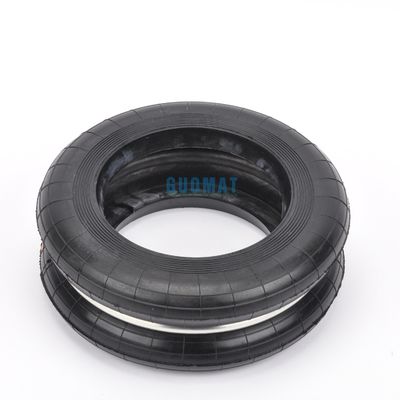

Suspensi Air Bellow F-240-2 Cross Yokohama S-240-2R Double Convoluted Air Spring

Detail produk:

Place of Origin:	Guangdong, China
Nama merek:	GUOMAT
Sertifikasi:	ISO/TS16949, ISO9001
Model Number:	F-240-2

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Harga:	dapat dinegosiasikan
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Kontak

Detil Deskripsi produk

Model NO.:	F-240-2	Warranty:	One Year
Desain Tinggi:	98 mm	Minimum Height:	53 mm
Stroke:	80 mm	Max Diameter:	300 mm
Customization:	Available \| Customized Request	Yokohama:	S-240-2R
Menyoroti:	S-240-2R Mata Air Bergelombang Ganda , F-240-2 Air Spring Ganda

Suspensi Air Bellow F-240-2 Cross Yokohama S-240-2R Double Convoluted Air Spring

F-240-2 Parameter rinci

GUOMAT NO.	Nomor referensi	Ketinggian H ((mm)			Biasanya Stroke Maksimum ((mm)	Diameter Terbesar Saat Dikompresi ((mm)
		Desain Tinggi ((mm)	Tinggi maksimum ((mm)	Ketinggian minimum ((mm)
F-240-2	S-240-2	98	148	53	± 40	300

GUOMAT NO.	Nomor referensi	Ketinggian standar,tekanan internal 0,49 MPa Ketika Nilai Umum					Menggunakan tekanan internal maksimum (Mpa)	Tekanan internal (Mpa)
GUOMAT NO.	Nomor referensi	Luas Efektif (Cm2)	Volume ((L)	Beban (Kn)	Parameter Dynamic Spring (N/Min)	Frekuensi getaran (Hz)	Menggunakan tekanan internal maksimum (Mpa)	Tekanan internal (Mpa)
F-240-2	S-240-2	450	4.4	22.2	520	2.4	0.88	2.9-3.9

Aplikasi

Industri pulp dan kertas
Pabrik kayu
Meja angkat
Alat dan sistem mesin
Produksi energi
Robot alat dan otomatisasi
Pengumpulan komponen
Perangkat mobil
Peralatan medis
Sistem konveyor
Kemasan

GUOMAT memiliki penyerap kejut udara Bagian NO di bawah.

GUOMAT Bagian NO.	Jepang YOKOHAMA Referensi No.	Jepang YOKOHAMA Referensi No.	GUOMAT Bagian NO.	Jepang YOKOHAMA Referensi No.	Jepang YOKOHAMA Referensi No.
F-600-1	S-600-1R	F-600-r1	F-240-4	S-240-4R	F-240-r4
F-600-2	S-600-2R	F-600-r2	F-240-3	S-240-3R	F-240-r3
F-600-3	S-600-3R	F-600-r3	F-240-2	S-240-2R	F-240-r2
F-600-4	S-600-4R	F-600-r4	F-240-1	S-240-1R	F-240-r1
F-600-5	S-600-5R	F-600-r5	F-220-4	S-220-4R	F-220-r4
F-550-2	S-550-2R	F-550-r2	F-220-3	S-220-3R	F-220-r3
F-550-3	S-550-3R	F-550-r3	F-220-2	S-220-2R	F-220-r2
F-500-2	S-500-2R	F-500-r2	F-200-2	S-200-2R	F-200-r2
F-500-3	S-500-3R	F-500-r3	F-200-3	S-200-3R	F-200-r3
F-500-4	S-500-4R	F-500-r4	F-200-4	S-200-4R	F-200-r4
F-500-5	S-500-5R	F-500-r5	F-160-1	S-160-1R	F-160-r1
F-450-1	S-450-1R	F-450-r1	F-160-2	S-160-2R	F-160-r2
F-450-2	S-450-2R	F-450-r2	F-160-3	S-160-3R	F-160-r3
F-450-3	S-450-3R	F-450-r3	F-160-4	S-160-4R	F-160-r4
F-450-4	S-450-4R	F-450-r4	F-120-4	S-120-4R	F-120-r4
F-450-5	S-450-5R	F-450-r5	F-120-3	S-120-3R	F-120-r3
F-400-2	S-400-2R	F-400-r2	F-120-2	S-120-2R	F-120-r2
F-400-3	S-400-3R	F-400-r3	F-100-4	S-100-4R	F-100-r4
F-400-4	S-400-4R	F-400-r4	F-90-3	S-90-3R	F-90-r3
F-400-5	S-400-5R	F-400-r5	F-90-2	S-90-2R	F-90-r2
F-350-1	S-350-1R	F-350-r1	F-90-1	S-90-1R	F-90-r1
F-350-2	S-350-2R	F-350-r2	F-300-1	S-300-1R	F-300-r1
F-350-3	S-350-3R	F-350-r3	F-300-2	S-300-2R	F-300-r2
F-350-4	S-350-4R	F-350-r4	F-300-3	S-300-3R	F-300-r3
			F-300-4	S-300-4R	F-300-r4
