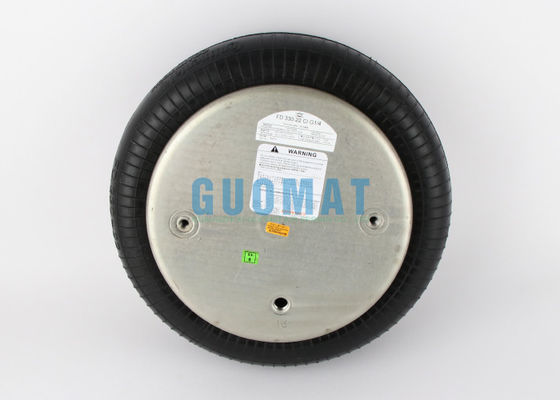

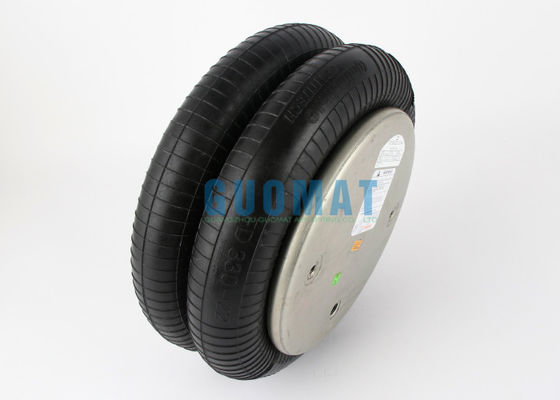

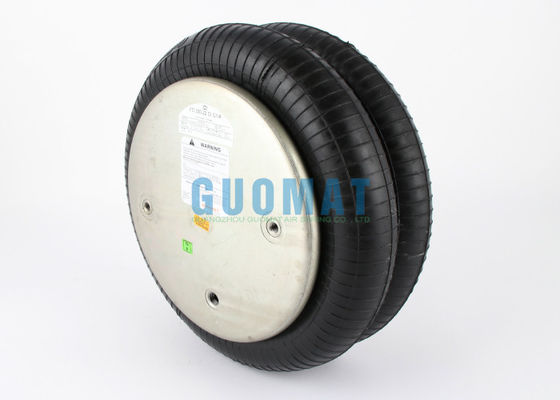

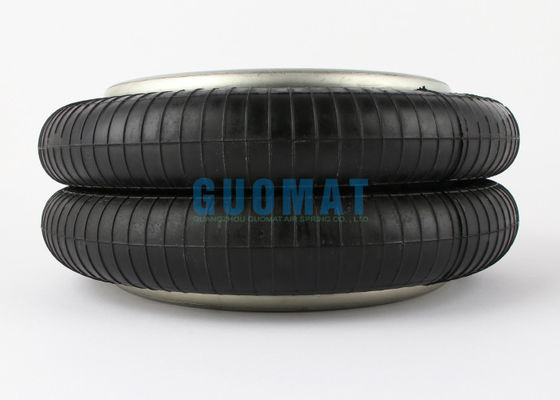

Continental Contitech FD 330-22 CI G1/4 Air Spring Karet 75-305 Stroke Air Suspension
Deskripsi Produk
Merek Asli: Contitech
Nomor Bagian: FD330-22
Nomor Bagian: FD 330-22
Nomor Bagian: FD330-22 CI
Nomor Bagian: FD 330-22 CI
Nomor Bagian: FD330-22 CI G1/4
Nomor Bagian: FD 330-22 CI G1/4
Nomor Bagian: FD330-22 CI G1/4
Nomor Bagian: FD 330-22 CI G1/4
Nomor referensi air spring FD330-22
Contitech FD 330-22 363
Firestone W01-358-7180/22
Goodyear 2B12-425 / 2B12-311
Goodyear 578-92-3-309
Segitiga 6316/4363
Airkraft 115060/3B-356
Contitech FD 330-22 472
Firestone W01-358-7181
Goodyear 2B12-411
Goodyear 578-92-3-309
Segitiga 6316/4472
Contitech FD 330-22 500
Firestone W01-358-7344
Goodyear 2B12-034
Segitiga 6316/4500
Contitech FD 330-22 313
Firestone W01-358-7400/22
Goodyear 2B12-309/ 2B12-316
Goodyear 578-92-3-309
Segitiga 6316/4313
Contitech FD 330-22 337
Firestone W01-358-7401
Goodyear 2B12-320
Goodyear 578-92-3-309
Segitiga 6316/4334
Contitech FD 330-22 318
Firestone W01-358-7403/22
Goodyear 2B12-307/2B12-433/2B12-445
Goodyear 578-92-3-309
Contitech FD 330-22 346
Firestone W01-358-7404
Goodyear 2B12-410/2B12-312
Goodyear 578-92-3-309
Segitiga 6316/4346
Contitech FD 330-22 364
Firestone W01-358-7405
Goodyear 2B12-313/2B12-459
Goodyear 578-92-3-309
Segitiga 6316/4364
Spesifikasi dan Parameter Teknis Rinci:
Kisaran suhu: -4±50°C (+70°C/-35±122°F (+158°F)
Tekanan maksimum saat istirahat: 8Bar/120psi
Tinggi diperpanjang: 305mm
Tinggi kompresi: 75mm
Tinggi desain: 240mm
Diameter penutup: 228mm
Jarak pusat antara lubang berujung: 157,5mm
Diameter luar maksimum karet: 325mm
| Jenis |
| Hanya balon karet |
| Dengan lempeng crimped G1 / 4 inlet udara A = 73mm eksentris |
| Dengan lempeng crimped G3 / 4 udara inlet A = 73mm eksentris |
| Dengan lempeng crimped G1 udara inlet A = 66mm eksentrik |
| Dengan pelat stainless steel crimped G1 inlet udara A = 66mm eksentrik |
Instruksi Layanan
M8:max.25 Nm
G1/4:max.25 Nm
G1:max.50 Nm
G3/4:max.50 Nm
